3 語言結構

本章描述了ArchiMate企業架構建模語言的結構。其標準元素與關係的詳細定義與範例將於第四章至第一章中說明

3.1 語言設計考量

在開發企業架構通用元模型時，一個關鍵挑戰是在單一架構領域語言的具體性與一套極為通用的架構概念之間取得平衡，這種概念反映了將系統視為一組相互關聯實體的觀點。

ArchiMate語言的設計從一組相對通用的概念出發。這些概念已在後續各節中說明，針對不同架構層級進行了具體化。語言最重要的設計限制是，它被明確設計為盡可能簡小，但仍足以應付大多數企業架構建模任務。許多其他語言試圖滿足所有可能使用者的需求。為追求學習與使用的簡便性，ArchiMate語言僅限於足以建模典型80%實際案例的概念。

本標準並未說明ArchiMate語言設計背後的詳細理由。感興趣的讀者可參考[1]、[2]與[3]，其中提供了語言建構與設計考量的詳細說明。

3.2 語言的頂層結構

圖1概述了語言的頂層階層結構：

• 模型是一組概念——概念可為元素或關係
• 元素可為行為元素、結構元素、動機元素或組合元素

請注意，這些是抽象概念；它們並非直接用於模型中。為表示此意，這些概念以白色呈現，標籤使用斜體。請參閱第四章以了解圖1中所用符號的說明。

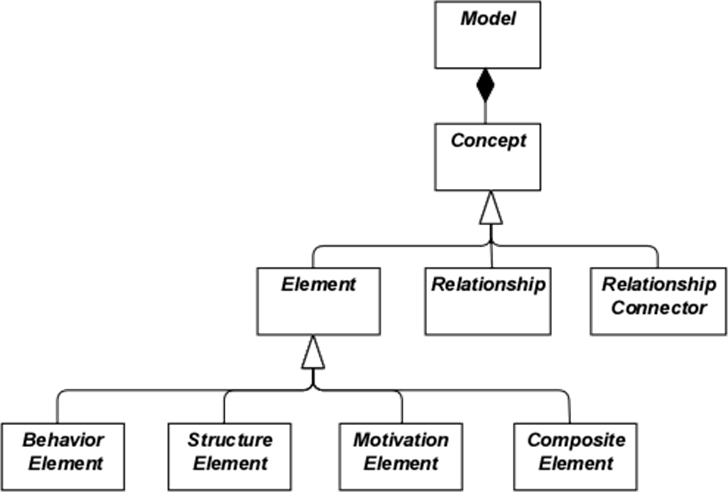

圖1：ArchiMate概念的頂層階層

3.3 ArchiMate語言的分層

ArchiMate核心語言定義了一組通用元素及其關係的結構，這些可在不同層級中加以具體化。ArchiMate核心語言中定義了三個層級，如下所示：

1. 業務層描述提供給客戶的業務服務，這些服務由業務實體執行的業務流程在組織中實現。
2. 應用層描述支援業務的應用服務，以及實現這些服務的應用程式。
3. 技術層包含資訊科技與作業科技。例如，您可以建模支援應用世界與業務層的處理、儲存與通訊科技，並以設施、實體設備、材料與配送網路來建模作業或實體科技。

不同層級中模型的整體結構類似。使用相同類型的元素與關係，儘管其具體性質與細緻程度有所不同。在下一章中，將介紹通用元模型的結構。在第8章、第9章與第10章中，這些元素將被進一步專化，以獲得特定層級的專屬元素。

配合服務導向原則，層級之間最重要的關係是由「服務」所形成的[1]關係，顯示一個層級中的元素如何由其他層級的服務來支援。（然而請注意，服務不僅可支援其他層級的元素，也能支援同一層級中的元素。）第二種連結由實作關係形成：下層的元素可能實作上層中對應的元素；例如，一個

「資料物件」（應用層）可能實作一個「業務物件」（業務層）；或一個

「實體」（科技層）可能實作「資料物件」或「應用元件」（應用層）。

3.4 ArchiMate 核心框架

ArchiMate 核心框架是一個由九個單元組成的框架，用於分類 ArchiMate 核心語言的元素。它由三個面向與三個層級組成，如圖2所示。這被稱為 ArchiMate 核心框架。

重要的是要理解，根據面向與層級對元素進行分類僅是一種整體性的分類方式。現實中的架構元素並不需要嚴格限制於某一面向或層級，因為連接不同面向與層級的元素，在一致的架構描述中扮演著核心角色。例如，提前討論後續的理論概念，業務角色作為「純粹行為性」元素與「純粹結構性」元素之間的中介元素，而某段特定軟體是否被視為應用層或科技層的一部分，可能取決於具體情境。

圖2：ArchiMate 核心框架

該框架的結構允許從不同觀點對企業進行建模，其中單元格中的位置突顯了利害關係人的關注點。利害關係人通常會關心多個單元格。

該框架的維度如下：

• 層級 – ArchiMate 中企業可建模的三個層級：業務、應用與科技（如第3.3節所述）
• 面向：

— 主動結構面向，代表結構性元素（展現實際行為的業務參與者、應用元件與裝置；亦即活動的「主體」）

活動的「主體」）

— 行為面向，代表由參與者執行的行為（流程、功能、事件與服務）；結構性元素被指派給行為性元素，以顯示是誰或什麼展現了行為

— 被動結構面向，代表行為所作用的對象；這些通常是業務層中的資訊物件與應用層中的資料物件，但也可用來表示實體物件

這三個面向靈感來自自然語言，其中一句話具有主詞（主動結構）、動詞（行為）與受詞（被動結構）。透過使用人們在其母語中熟悉的構造，ArchiMate 語言更易於學習與閱讀。

由於 ArchiMate 記法是一種圖形語言，其中元素以空間方式組織，因此此順序在建模中並無影響。

如圖1所示，一個複合元素是不一定僅適合框架中單一面向（欄位）的元素，而可能結合兩個或更多面向。

請注意，ArchiMate 語言並不要求建模者使用任何特定的佈局，例如本框架的結構；它僅僅是語言元素的分類。

3.5 ArchiMate 完整框架

本標準版本所描述的 ArchiMate 完整框架，在核心框架的基礎上增加了若干層與一個方面。物理元素被納入技術層，用於模擬實體設施與設備、分佈網絡及物料。因此，這些元素也屬於核心元素。策略元素用於模擬戰略方向與決策，其內容詳述於第 7 章。動機方面在下一章以通用層級提出，並於第 6 章詳細說明。實施與遷移元素則於第 12 章中描述。由此產生的 ArchiMate 完整框架如圖 3 所示。

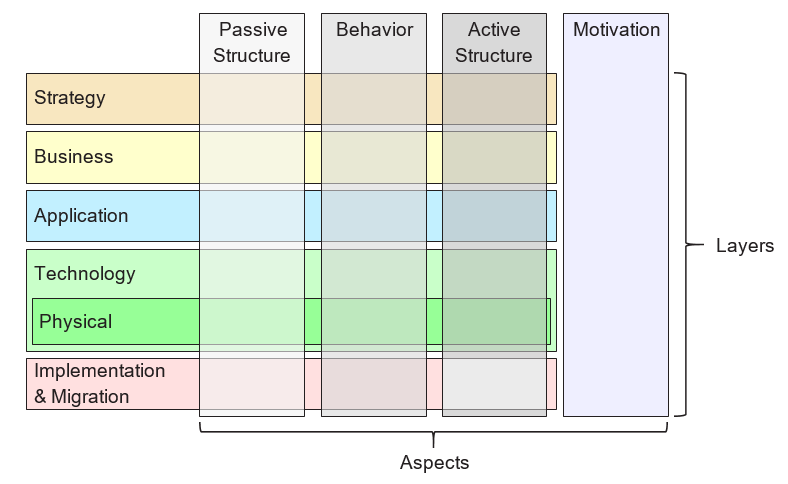

圖 3：ArchiMate 完整框架

ArchiMate 語言並未定義專門的資訊層；然而，可使用來自被動結構方面的元素，例如業務物件、資料物件與實體，來表示資訊實體。資訊建模在 ArchiMate 的各層中均受到支援。

3.6 ArchiMate 語言中的抽象

ArchiMate 語言的結構可容納多種熟悉的抽象與精化形式。首先，外部（黑箱，從盒子內容中抽象）與內部（白箱）視圖的區別在系統設計中十分常見。外部視圖描述系統對其環境必須執行的內容，而內部視圖則描述系統如何執行這些內容。

其次，行為與主動結構之間的區別常被用來將系統必須執行的事項及其執行方式，與實際執行這些事項的系統組成部分（人員、應用程式與基礎設施）分開。在建模新系統時，通常從系統必須執行的行為開始較為實用；而在建模現有系統時，則通常從構成系統的人員、應用程式與基礎設施開始，再進一步詳細分析這些主動結構所執行的行為。

第三種區別是概念、邏輯與物理抽象層級之間的差異。此概念源自資料建模：概念元素代表企業認為相關的資訊；邏輯元素為這些資訊提供邏輯結構，以便資訊系統進行操作；物理元素則描述資訊的儲存方式，例如檔案或資料庫表格的形式。在 ArchiMate 語言中，這對應於業務物件、資料物件與實體，以及它們之間的實現關係。

邏輯與物理元素之間的區別也延伸至應用程式的描述。TOGAF 企業元模型 [4] 包含一組實體，用以描述業務、資料、應用程式與技術組件及服務，以闡述架構概念。邏輯組件是資料或功能的實現或產品無關封裝，而物理組件則是具體的軟體組件、裝置等。此區別在 TOGAF 框架中以架構構建模塊（ABBs）與解決方案構建模塊（SBBs）的形式呈現。此區別再次有助於將企業架構從高階抽象描述逐步推進至具體的實現層設計。請注意，構建模塊可能包含多個元素，這些元素通常使用 ArchiMate 語言中的群組概念進行建模。

ArchiMate 語言有三種方式來建模此類抽象。首先，如 [6] 所述，可使用行為元素（如應用程式與技術功能）來建模邏輯組件，因為它們代表與實現無關的功能封裝。相對應的物理組件則可使用主動結構元素（如應用程式組件與節點）來建模，並指派給行為元素。其次，ArchiMate 語言支援「實現」的概念。這可透過自技術層向上推進來最佳說明：技術層定義了實現應用程式組件的實體與軟體，並提供與其他實體概念（如裝置、網路等）的對應關係，以支援資訊系統的實現。實現關係亦可用於模擬更抽象的實現關係，例如介於（較具體）需求與（較通用）原則之間的關係，其中需求的滿足即意味著遵循該原則。實現關係也允許應用程式組件之間或節點之間的關係。如此，可建模物理應用程式或技術組件實現邏輯應用程式或技術組件。第三，邏輯與物理應用程式組件可被定義為應用程式組件元素的元模型層級特化，詳述於第 14 章（另見第 14.2.2 節之範例）。TOGAF 內容元模型中的邏輯與物理技術組件亦同理，可定義為節點元素的特化（見第 14.2.3 節）。

ArchiMate 語言有意不支援類型與實例之間的差異。在企業架構的抽象層級上，通常更常建模的是類型與/或範例，而非實例。同樣地，ArchiMate 語言中的業務流程並非描述單一實例（即該流程的一次執行）。因此，在大多數情況下，會使用業務物件來建模物件類型（參見一個 UML® 類別），組織內可能存在多個實例。例如，每次保險申請流程的執行可能產生保險合約業務物件的一個特定實例，但這並不會在企業架構中進行建模。

3.7 概念及其符號

ArchiMate 語言將語言概念（即元模型的組成部分）與其符號分離。不同利害關係人團體可能需要不同的符號以理解架構模型或視圖。在此方面，ArchiMate 語言與 UML 或 BPMN™ 等語言不同，後者僅有一種標準化符號。第 13 章所說明的觀點機制提供了定義此類利害關係人導向視覺化的方法。

雖然 ArchiMate 概念的符號（應）可依利害關係人而異，但本標準提供一種通用的圖形符號，可供架構師及其他開發 ArchiMate 模型的人使用。此符號針對熟悉現有技術建模技術（如實體關係圖 ERD、UML 或 BPMN）的使用者設計，因此與之類似。在本文其餘部分，除非另有說明，用以呈現語言概念的符號均代表 ArchiMate 標準符號。大多數元素的標準符號由右上角帶有圖示的方框組成。在某些情況下，僅使用圖示本身亦可作為替代符號。應盡可能優先使用此標準圖示，以便任何熟悉 ArchiMate 語言的人皆能理解該語言所產生的圖示。

3.8 嵌套的使用

將元素嵌套於其他元素內部，可用作表達某些關係的替代圖形符號。此概念在第 5 章及各關係的定義中進一步說明。

3.9 顏色與符號提示的使用

在本標準內的元模型圖示中，使用灰色調來區分屬於 ArchiMate 框架不同方面的元素，具體如下：

• 白色：用於抽象（即不可實例化）概念
• 淺灰色：用於被動結構
• 中灰色：用於行為
• 深灰色：用於主動結構

在 ArchiMate 模型中，顏色並無正式語義，其使用由建模者自行決定。然而，可自由使用顏色以強調模型中的特定方面。例如，在本標準所呈現的許多範例模型中，顏色被用來區分 ArchiMate 核心框架的各層，具體如下：

• 黃色：用於業務層
• 藍色：用於應用層
• 綠色：用於技術層

顏色亦可用於視覺強調。建議參考 [1] 的第 6 章以獲取相關指引。除了顏色外，亦可使用其他符號提示來區分框架的各層。元素左上角的字母 M、S、B、A、T、P 或 I 可分別表示動機、策略、業務、應用、技術、物理或實施與遷移元素。此符號的範例見於範例 34。

標準符號還使用了一種規則，即根據不同元素類型的符號角的形狀來表示，具體如下：

• 方形角用於表示結構元素
• 圓形角用於表示行為元素
• 對角線角用於表示動機元素

[1]注意，此項在標準的先前版本中稱為「被使用」。為確保清晰，此名稱已更改为「服務」。

3 Language Structure

This chapter describes the structure of the ArchiMate Enterprise Architecture modeling language. The detailed definition and examples of its standard set of elements and relationships follow in Chapter 4 to Chapter 1

3.1 Language Design Considerations

A key challenge in the development of a general metamodel for Enterprise Architecture is to strike a balance between the specificity of languages for individual architecture domains and a very general set of architecture concepts, which reflects a view of systems as a mere set of inter-related entities.

The design of the ArchiMate language started from a set of relatively generic concepts. These have been specialized towards application at different architectural layers, as explained in the following sections. The most important design restriction on the language is that it has been explicitly designed to be as small as possible, but still usable for most Enterprise Architecture modeling tasks. Many other languages try to accommodate the needs of all possible users. In the interest of simplicity of learning and use, the ArchiMate language has been limited to the concepts that suffice for modeling the proverbial 80% of practical cases.

This standard does not describe the detailed rationale behind the design of the ArchiMate language. The interested reader is referred to [1], [2], and [3], which provide a detailed description of the language construction and design considerations.

3.2 Top-Level Language Structure

Figure 1 outlines the top-level hierarchical structure of the language:

• A model is a collection of concepts – a concept is either an element or a relationship
• An element is either a behavior element, a structure element, a motivation element, or a composite element

Note that these are abstract concepts; they are not intended to be used directly in models. To signify this, they are depicted in white with labels in italics. See Chapter 4 for an explanation of the notation used in Figure 1.

Figure 1: Top-Level Hierarchy of ArchiMate Concepts

3.3 Layering of the ArchiMate Language

The ArchiMate core language defines a structure of generic elements and their relationships, which can be specialized in different layers. Three layers are defined within the ArchiMate core language as follows:

1. The Business Layer depicts business services offered to customers, which are realized in the organization by business processes performed by business actors.
2. The Application Layer depicts application services that support the business, and the applications that realize them.
3. The Technology Layer comprises both information and operational technology. You can model, for example, processing, storage, and communication technology in support of the application world and Business Layers, and model operational or physical technology with facilities, physical equipment, materials, and distribution networks.

The general structure of models within the different layers is similar. The same types of elements and relationships are used, although their exact nature and granularity differ. In the next chapter, the structure of the generic metamodel is presented. In Chapter 8, Chapter 9, and Chapter 10 these elements are specialized to obtain elements specific to a particular layer.

In alignment with service-orientation, the most important relationship between layers is formed by “serving”[1] relationships, which show how the elements in one layer are served by the services of other layers. (Note, however, that services need not only serve elements in another layer, but also can serve elements in the same layer.) A second type of link is formed by realization relationships: elements in lower layers may realize comparable elements in higher layers; e.g., a

“data object” (Application Layer) may realize a “business object” (Business Layer); or an

“artifact” (Technology Layer) may realize either a “data object” or an “application component” (Application Layer).

3.4 The ArchiMate Core Framework

The ArchiMate Core Framework is a framework of nine cells used to classify elements of the ArchiMate core language. It is made up of three aspects and three layers, as illustrated in Figure 2. This is known as the ArchiMate Core Framework.

It is important to understand that the classification of elements based on aspects and layers is only a global one. Real-life architecture elements need not strictly be confined to one aspect or layer because elements that link the different aspects and layers, play a central role in a coherent architectural description. For example, running somewhat ahead of the later conceptual discussions, business roles serve as intermediary elements between “purely behavioral” elements and “purely structural” elements, and it may depend on the context whether a certain piece of software is considered to be part of the Application Layer or the Technology Layer.

Figure 2: ArchiMate Core Framework

The structure of the framework allows for modeling of the enterprise from different viewpoints, where the position within the cells highlights the concerns of the stakeholder. A stakeholder typically can have concerns that cover multiple cells.

The dimensions of the framework are as follows:

• Layers – the three levels at which an enterprise can be modeled in ArchiMate – Business, Application, and Technology (as described in Section 3.3)
• Aspects:

— The Active Structure Aspect, which represents the structural elements (the business actors, application components, and devices that display actual behavior; i.e., the

“subjects” of activity)

— The Behavior Aspect, which represents the behavior (processes, functions, events, and services) performed by the actors; structural elements are assigned to behavioral elements, to show who or what displays the behavior

— The Passive Structure Aspect, which represents the objects on which behavior is performed; these are usually information objects in the Business Layer and data objects in the Application Layer, but they may also be used to represent physical objects

These three aspects were inspired by natural language where a sentence has a subject (active structure), a verb (behavior), and an object (passive structure). By using the same constructs that people are used to in their own languages, the ArchiMate language is easier to learn and read.

Since ArchiMate notation is a graphical language where elements are organized spatially, this order is of no consequence in modeling.

A composite element, as shown in Figure 1, is an element that does not necessarily fit in a single aspect (column) of the framework but may combine two or more aspects.

Note that the ArchiMate language does not require the modeler to use any particular layout such as the structure of this framework; it is merely a categorization of the language elements.

3.5 The ArchiMate Full Framework

The ArchiMate Full Framework, as described in this version of the standard, adds a number of layers and an aspect to the Core Framework_._ The physical elements are included in the Technology Layer for modeling physical facilities and equipment, distribution networks, and materials. As such, these are also core elements. The strategy elements are introduced to model strategic direction and choices. They are described in Chapter 7. The motivation aspect is introduced at a generic level in the next chapter and described in detail in Chapter 6. The implementation and migration elements are described in Chapter 12. The resulting ArchiMate Full Framework is shown in Figure 3.

Figure 3: ArchiMate Full Framework

The ArchiMate language does not define a specific layer for information; however, elements from the passive structure aspect such as business objects, data objects, and artifacts are used to represent information entities. Information modeling is supported across the different ArchiMate layers.

3.6 Abstraction in the ArchiMate Language

The structure of the ArchiMate language accommodates several familiar forms of abstraction and refinement. First of all, the distinction between an external (black-box, abstracting from the contents of the box) and internal (white-box) view is common in systems design. The external view depicts what the system has to do for its environment, while the internal view depicts how it does this.

Second, the distinction between behavior and active structure is commonly used to separate what the system must do and how the system does it from the system constituents (people, applications, and infrastructure) that do it. In modeling new systems, it is often useful to start with the behaviors that the system must perform, while in modeling existing systems, it is often useful to start with the people, applications, and infrastructure that comprise the system, and then analyze in detail the behaviors performed by these active structures.

A third distinction is between conceptual, logical, and physical abstraction levels. This has its roots in data modeling: conceptual elements represent the information the business finds relevant; logical elements provide logical structure to this information for manipulation by information systems; physical elements describe the storage of this information; for example, in the form of files or database tables. In the ArchiMate language, this corresponds with business objects, data objects, and artifacts, along with the realization relationships between them.

The distinction between logical and physical elements has also been carried over to the description of applications. The TOGAF Enterprise Metamodel [4] includes a set of entities that describe business, data, application, and technology components and services to describe architecture concepts. Logical components are implementation or product-independent encapsulations of data or functionality, whereas physical components are tangible software components, devices, etc. This distinction is captured in the TOGAF framework in the form of Architecture Building Blocks (ABBs) and Solution Building Blocks (SBBs). This distinction is again useful in progressing Enterprise Architectures from high-level, abstract descriptions to tangible, implementation-level designs. Note that building blocks may contain multiple elements, which are typically modeled using the grouping concept in the ArchiMate language.

The ArchiMate language has three ways of modeling such abstractions. First, as described in [6], behavior elements such as application and technology functions can be used to model logical components, since they represent implementation-independent encapsulations of functionality. The corresponding physical components can then be modeled using active structure elements such as application components and nodes, assigned to the behavior elements. Second, the ArchiMate language supports the concept of realization. This can best be described by working with the Technology Layer upwards. The Technology Layer defines the physical artifacts and software that realize an application component. It also provides a mapping to other physical concepts such as devices, networks, etc. needed for the realization of an information system. The realization relationship is also used to model more abstract kinds of realization, such as that between a (more specific) requirement and a (more generic) principle, where fulfillment of the requirement implies adherence to the principle. Realization is also allowed between application components and between nodes. This way you can model a physical application or technology component realizing a logical application or technology component, respectively. Third, logical and physical application components can be defined as metamodel-level specializations of the application component element, as described in Chapter 14 (see also the examples in Section 14.2.2). The same holds for the logical and physical technology components of the TOGAF Content Metamodel, which can be defined as specializations of the node element (see Section 14.2.3).

The ArchiMate language intentionally does not support a difference between types and instances. At the Enterprise Architecture abstraction level, it is more common to model types and/or exemplars rather than instances. Similarly, a business process in the ArchiMate language does not describe an individual instance (i.e., one execution of that process). In most cases, a business object is therefore used to model an object type (cf. a UML® class), of which several instances may exist within the organization. For instance, each execution of an insurance application process may result in a specific instance of the insurance policy business object, but that is not modeled in the Enterprise Architecture.

3.7 Concepts and their Notation

The ArchiMate language separates the language concepts (i.e., the constituents of the metamodel) from their notation. Different stakeholder groups may require different notations in order to understand an architecture model or view. In this respect, the ArchiMate language differs from languages such as UML or BPMN™, which have only one standardized notation. The viewpoint mechanism explained in Chapter 13 provides the means for defining such stakeholder-oriented visualizations.

Although the notation of the ArchiMate concepts can (and should) be stakeholder-specific, the standard provides one common graphical notation which can be used by architects and others who develop ArchiMate models. This notation is targeted towards an audience used to existing technical modeling techniques such as Entity Relationship Diagrams (ERDs), UML, or BPMN, and therefore resembles them. In the remainder of this document, unless otherwise noted, the symbols used to depict the language concepts represent the ArchiMate standard notation. This standard notation for most elements consists of a box with an icon in the upper-right corner. In several cases, this icon by itself may also be used as an alternative notation. This standard iconography should be preferred whenever possible so that anyone knowing the ArchiMate language can read the diagrams produced in the language.

3.8 Use of Nesting

Nesting elements inside other elements can be used as an alternative graphical notation to express some relationships. This is explained in more detail in Chapter 5 and in the definition of each of these relationships.

3.9 Use of Colors and Notational Cues

In the metamodel pictures within this standard, shades of grey are used to distinguish elements belonging to the different aspects of the ArchiMate framework, as follows:

• White for abstract (i.e., non-instantiable) concepts
• Light grey for passive structures
• Medium grey for behavior
• Dark grey for active structures

In ArchiMate models, there are no formal semantics assigned to colors and the use of color is left to the modeler. However, they can be used freely to stress certain aspects in models. For instance, in many of the example models presented in this standard, colors are used to distinguish between the layers of the ArchiMate Core Framework, as follows:

• Yellow for the Business Layer
• Blue for the Application Layer
• Green for the Technology Layer

They can also be used for visual emphasis. A recommended text providing guidelines is Chapter 6 of [1]. In addition to the colors, other notational cues can be used to distinguish between the layers of the framework. A letter M, S, B, A, T, P, or I in the top-left corner of an element can be used to denote a Motivation, Strategy, Business, Application, Technology, Physical, or Implementation & Migration element, respectively. An example of this notation is depicted in Example 34.

The standard notation also uses a convention with the shape of the corners of its symbols for different element types, as follows:

• Square corners are used to denote structure elements
• Round corners are used to denote behavior elements
• Diagonal corners are used to denote motivation elements

[1] Note that this was called “used by” in previous versions of the standard. For the sake of clarity, this name has been changed to “serving”.
