Introduction: The Evolving Role of UML Activity Diagrams in Modern Software Development

UML Activity Diagrams represent one of the most powerful and expressive forms of behavioral modeling in the Unified Modeling Language (UML). Unlike static structure diagrams such as class or component diagrams, activity diagrams focus on the dynamic behavior of systems—how processes unfold, decisions are made, and workflows progress over time.

Originally conceived as a way to model business processes and software workflows in a formal yet intuitive manner, UML activity diagrams have evolved into a foundational tool for bridging the gap between high-level business requirements and detailed system logic. Today, they are integral to requirements analysis, user experience design, process automation, and even algorithmic workflow specification.

Core Concepts and Structural Semantics of UML Activity Diagrams

At its foundation, an activity diagram is a flow-based representation of a sequence of actions, decisions, and events. It uses a well-defined symbolic vocabulary to represent process elements in a way that is both visually clear and semantically rigorous.

Initial Node (●): Marks the starting point of the workflow. This is a filled black circle and typically appears at the top-left of the diagram, signaling where the process begins—such as a user initiating a booking or a system receiving a request.

• Action Nodes (Rounded Rectangles): Represent executable tasks or activities. These can be user actions (e.g., “Select Room Type”) or system operations (e.g., “Validate Check-in Date”). Each action is a discrete step that contributes to the overall process.
• Control Flow (Arrows →): Directed edges represent the sequence of execution. These flows determine the order in which steps occur, allowing for linear progression, conditional branching, or parallel execution.
• Decision Nodes (◇): Diamonds represent branching logic based on conditions. For instance, “Is Check-in Date Before Check-out Date?” triggers paths for valid or invalid inputs. Guards—Boolean expressions written on edges—provide precise conditions that influence flow direction.
• Merge Nodes (◇): Reunite multiple incoming flows after branching. Though often implicit in simple processes, they are critical when multiple parallel or conditional paths merge back into a single flow (e.g., after a customer submits a form with multiple options).
• Fork and Join Nodes (Horizontal Bars): Enable the modeling of concurrent processes. A fork splits a single flow into parallel sub-processes (e.g., validating payment and booking room simultaneously), while a join synchronizes them into a unified outcome. These are especially relevant in distributed systems or complex transactional workflows.
• Final Node (⊙): A circled black dot marks the end of the activity. This could represent completion, system response, or failure. In some cases, a final node may be omitted if process termination is implied by context.
• Swimlanes or Partitions: Vertical or horizontal lanes divide the workflow by responsibility or role (e.g., “User”, “System”, “Payment Gateway”). This improves readability in complex systems and enables stakeholder alignment on process ownership.
• Object Nodes, Pins, and Exception Flows: Objects represent data or entities (e.g., “Reservation Object”) that may be created, modified, or destroyed. Pins allow for parameter passing between actions. Exception flows (often shown with dashed lines) model error conditions such as invalid input, network failures, or system errors.

These elements are not arbitrary—they are formally defined in the UML 2.5 specification and are designed to ensure clarity, precision, and traceability in process modeling. The result is a diagram that is not just a visual sketch but a formalized behavioral specification that can be used in design reviews, testing, and even code generation.

UML Example Activity Diagram

Here’s a clear explanation of UML Activity Diagram notation, using the structure and elements from your provided example as a guide. I’ll walk through each part step by step, mapping it to standard UML symbols and conventions.

The simple activity diagram above captures the most commonly used elements in activity diagrams — a great representative example for many real-world processes (e.g., user registration, order processing, booking systems).

1. Initial Node (Start)

• Symbol: ● (filled black circle)
• Meaning: The starting point of the entire activity / process.
• In your diagram: The top ● where the flow begins after any pre-conditions.

2. Action / Activity Node

• Symbol: Rounded rectangle (sometimes shown as a pill shape or rectangle with rounded corners)
• Meaning: Represents a single step, task, operation, or computation performed by the system or actor.
• In your diagram:
  • Step 1, Step 2, Step 3
  • Step 4.1 and Step 4.2 (parallel steps)
• Common labels: Verb phrases like “Validate input”, “Process payment”, “Send email”

3. Control Flow (Arrow)

• Symbol: Solid arrow → (sometimes with open arrowhead)
• Meaning: Shows the sequence of execution from one action to the next.
• In your diagram: All the solid arrows connecting steps.
• Dashed arrows (—-→) are sometimes used informally for actor input or data flow, though standard UML prefers solid for control flow and dashed/dotted for object flow.

4. Decision Node (Branch / Conditional)

• Symbol: ◇ (diamond)
• Meaning: Represents a branching point based on a condition (yes/no, true/false, or multiple guards).
• Guards: Written in square brackets [condition] on the outgoing edges.
• In your diagram:
  • The first ◇ with “True?” → [Yes] to basic flow, [No] to alternative/extension.
  • The second ◇ (returning alternative flow) that rejoins the main path.

5. Merge Node

• Symbol: Also ◇ (diamond) — same shape as decision, but used to recombine incoming flows.
• Meaning: Synchronizes multiple incoming paths into one outgoing path (no condition needed).
• In your diagram: The lower ◇ after the alternative flow returns to the main path.

Note: In simple diagrams, people sometimes reuse the same diamond for both decision and merge, but strictly they are separate (decision has one incoming / multiple outgoing; merge has multiple incoming / one outgoing).

6. Fork Node (for Parallel / Concurrent Activities)

• Symbol: Thick horizontal bar — (or vertical in some tools)
• Meaning: Splits a single flow into multiple concurrent (parallel) flows that can execute independently.
• In your diagram: The bar below Step 3 that splits into Step 4.1 and Step 4.2.

7. Join Node (Synchronization)

• Symbol: Thick horizontal bar — (same as fork, but used for joining)
• Meaning: Waits for all incoming parallel flows to complete before proceeding.
• In your diagram: The lower bar that recombines Step 4.1 and Step 4.2 before going to the final node.

8. Final Node (Activity Final)

• Symbol: ⊙ (bullseye: circle with filled inner circle) or sometimes just ● inside a circle
• Meaning: The end of the entire activity — all flows lead here when the process completes.
• In your diagram: The bottom ⊙ after post-conditions.

(Some diagrams also use a separate Flow Final node ⊗ to terminate only one path without ending the whole activity, but your example uses the full activity final.)

Additional Common Elements (Not in Your Sketch but Frequently Seen)

• Swimlanes / Partitions: Vertical or horizontal lanes labeled with actors/roles (e.g., Customer | System | Payment Gateway) to show who performs each action.
• Object Nodes / Pins: Rectangles for data being passed (e.g., Order object flowing between actions).
• Guard Conditions: [Yes], [No], [Age > 18], [Payment successful], etc.
• Notes: Small rectangles with folded corner for explanations.

Key Application Domains in Software and Business Environments

Activity diagrams are particularly effective in scenarios where procedural behavior, user interaction, and conditional logic are central to the process. Their value is amplified when used to model end-to-end workflows with multiple paths and error conditions.

1. Business Process Modeling

Organizations use activity diagrams to map internal workflows such as employee onboarding, order fulfillment, invoice processing, or customer support escalation. By visualizing each stage—from initial request to final resolution—teams can identify bottlenecks, redundancies, or compliance risks.

2. Use Case Expansion and Elaboration

Use case diagrams describe “what” a system does; activity diagrams explain “how.” For example, a use case like “Book a Room” can be expanded into a detailed activity flow that includes:

• User selects room type
• System validates dates
• Check-in must be before check-out
• If invalid, prompt user to correct dates
• If valid, check room availability
• Room is confirmed or rejected
• User receives email confirmation

This level of detail enables accurate estimation, risk identification, and functional validation before development begins.

3. System Workflow and Flow Control Design

From login flows to checkout pipelines, activity diagrams are essential for modeling the internal logic of software systems. Examples include:

• Login process with multi-factor authentication
• E-commerce checkout with payment gateway integration
• Appointment scheduling with doctor availability checks
• Video upload workflows involving size validation and retry logic

4. Algorithmic and Control Logic Representation

Complex software logic, such as loop-based validations, iterative retries, or conditional thresholds, can be effectively modeled using activity diagrams. For instance, a video upload process may:

1. Attempt upload
2. If failed (due to size or network), retry with a delay
3. If retry fails after three attempts, notify user

Such workflows are difficult to describe in plain text but are naturally expressed in activity diagrams through loops, decision points, and exception branches.

5. Requirements Validation and Gap Analysis

Before coding begins, activity diagrams serve as a validation tool. They allow stakeholders to review whether all necessary steps, edge cases, and error paths are accounted for. Missing transitions, unhandled exceptions, or ambiguous loops can be identified early, reducing the likelihood of costly rework during implementation.

The AI Revolution in Process Modeling: From Text to UML in Seconds

Historically, creating a UML activity diagram required expertise in UML syntax, familiarity with modeling tools (e.g., Visual Paradigm, Lucidchart, Enterprise Architect), and iterative refinement. The process was time-consuming and often led to inconsistencies, especially when dealing with complex conditional logic or parallel processes.

Today, the integration of natural language processing (NLP) with UML generation tools has transformed how teams conceptualize and visualize workflows. Tools such as Visual Paradigm’s AI Activity Diagram Generator—accessible via its conversational chat interface at chat.visual-paradigm.com—allow users to describe a process in plain English and receive a fully compliant UML activity diagram in seconds.

How the AI Workflow Operates

The AI-powered generation process follows a structured, multi-stage interpretation pipeline:

1. Intent Parsing: The system analyzes the user input to extract key components such as actions, conditions, decision points, and outcomes. It uses NLP models trained on domain-specific business language to interpret semantic meaning.
2. Element Mapping: Each textual step is mapped to a UML element—e.g., “User selects room type” becomes a rounded rectangle labeled “User selects room type”.
3. Flow Construction: Control flows are inferred from sequence and conditional statements. For example, “if check-in date is after check-out date, show error” generates a decision node with a guard condition and two outgoing paths.
4. Layout Optimization: The AI arranges elements for optimal readability—balancing spacing, flow direction, and visual hierarchy—ensuring the diagram is intuitive and easy to follow.
5. Validation and Enhancement: The generated diagram is cross-checked against UML standards. The AI ensures that all flows are properly connected, all decisions have guard conditions, and that merge points are correctly applied where needed.

This process is not just about automation—it introduces a new level of contextual intelligence. The AI doesn’t just generate diagrams; it interprets business intent, anticipates common edge cases, and suggests improvements to ensure completeness and robustness.

Practical Example: Hotel Reservation System

Consider the following prompt:

“Generate an activity diagram for the Book Room process in a Hotel Reservation System. The user selects a room type, enters check-in and check-out dates, the system validates these dates (check-in before check-out), checks room availability, and sends a confirmation email if successful. If dates are invalid or unavailable, show an error message and prompt the user to correct inputs.”

The AI-generated diagram includes:

• Initial node marking the start
• Action nodes for user input and system validation
• Decision node with guard: “Check-in date < Check-out date?”
• Two outgoing branches: one for valid dates (continues to availability check), one for invalid dates (loops back to input)
• Flow to room availability check with conditional outcome
• Successful path leads to email confirmation and database save
• Failure path includes error message and return to input
• Final nodes for success and failure outcomes
• Optional swimlanes: User vs. System

This example demonstrates how AI can interpret natural language with sufficient fidelity to produce a structurally sound, standards-compliant diagram that accurately reflects real-world business logic.

Advantages of AI-Driven Diagram Generation

Adopting AI-powered tools for activity diagram creation delivers significant benefits across technical, operational, and organizational domains:

• Speed and Efficiency: A full activity diagram is generated in under 10 seconds, compared to hours of manual work in legacy tools.
• Lower Skill Barrier: No prior UML experience is required. Business analysts, product owners, and non-technical stakeholders can now contribute to process modeling through natural language.
• Improved Accuracy: AI reduces human error by ensuring consistent syntax, proper flow connectivity, and absence of missing decisions or merges.
• Enhanced Collaboration: Teams can iterate on the diagram through conversational refinement—e.g., “Add a loop to retry after invalid date input” or “Include a swimlane for the Payment Module.”
• Early Risk Detection: The AI flags potential issues such as unconnected flows, missing guards, or unbalanced decision trees, enabling proactive refinement.
• Scalability: Teams can rapidly prototype multiple processes (e.g., booking, cancellation, refund) without relearning modeling fundamentals.

Limitations and Considerations

While powerful, AI-generated diagrams are not infallible. They may:

• Miss implicit assumptions or domain-specific rules (e.g., room cancellation policies)
• Over-simplify complex decision trees with poor granularity
• Generate diagrams that are logically accurate but contextually misleading without expert review

Therefore, AI should be viewed as a collaborative assistant, not a replacement for human judgment. Final diagrams should be reviewed and validated by domain experts to ensure completeness and fidelity to business rules.

Future Directions and Implications for Software Development

The integration of AI into UML modeling marks a pivotal shift in how software teams conceptualize and design processes. As generative AI matures, we can expect further advancements such as:

• Autonomous Diagram Generation from User Stories: Converting a user story like “As a guest, I want to book a room for two nights” directly into a full activity flow.
• Living Diagrams that Evolve with Requirements: Diagrams that automatically update as requirements change—perhaps triggered by a change in a use case or a new business rule.
• Linking to Code and Test Cases: AI systems generating initial diagrams that then auto-generate stub code or test scenarios based on control flow.
• Automated Code-to-Diagram and Diagram-to-Code Mapping: Bidirectional flows between design and implementation, reducing the gap between specification and execution.

This evolution points toward a conversational design paradigm, where stakeholders engage with a system through natural language, and the system responds with visual, formalized models in real time.

Conclusion: The Future of Process Modeling Is Conversational

UML activity diagrams remain a cornerstone of software and business process modeling. Their structured, formal approach ensures clarity in complex, conditional workflows—especially when used in conjunction with stakeholder communication and technical design.

However, the advent of AI-powered natural language generation has democratized access to these diagrams. What once required hours of modeling effort, UML knowledge, and specialized tools can now be achieved in minutes through simple, conversational prompts.

As teams continue to adopt this technology, the process of design will become more inclusive, faster, and more accurate. The future of diagramming is no longer about drawing—it’s about conversing.

Articles and resources

• Free Online Activity Diagram Tool | Visual Paradigm: This is a web-based solution for visualizing workflows and business processes without requiring software installation.

• What Is an Activity Diagram? | UML Guide by Visual Paradigm: An in-depth guide explaining the purpose, components, and use cases of activity diagrams in modeling system workflows.

• Activity Diagram Tutorial | Step-by-Step Guide | Visual Paradigm: A comprehensive tutorial designed for beginners to learn how to model complex workflows using step-by-step instructions.

• Activity Diagrams in Software Design | Visual Paradigm Handbook: A detailed handbook section on using activity diagrams to map out system behavior and decision points effectively.

• Mastering UML Activity Diagrams with AI | Visual Paradigm Blog: This post explores how AI-powered features enhance the creation and optimization of activity diagrams for developers and analysts.

• Generate Activity Diagrams from Use Cases Instantly with Visual Paradigm’s AI: This resource highlights how the AI engine enables rapid and accurate conversion of use cases into professional diagrams.

• Mastering Swimlane Activity Diagrams: A Practical Guide with Examples: A guide focused on creating swimlane diagrams to visualize workflows across different roles or departments.

• Convert Use Case to Activity Diagram – AI-Powered Transformation: Details an AI transformation tool that automatically converts use case diagrams into detailed activity diagrams.

• Advanced Activity Diagram Software Features | Visual Paradigm: An overview of powerful tool capabilities, including real-time collaboration and extensive export options.

• Activity Diagram Guide | Visual Paradigm User Manual: A technical reference in the user manual covering all aspects from basic diagram creation to advanced modeling.

Introduction

The landscape of software architecture and business process modeling is undergoing a significant transformation. For years, professionals have relied on traditional manual diagramming within Visual Paradigm—a method characterized by precise control, drag-and-drop mechanics, and manual definition of relationships. While effective, this approach can be time-intensive, particularly during the initial drafting phases of complex systems.

As of 2026, the transition to AI-powered generative modeling marks a major productivity leap for Visual Paradigm users. This shift moves the workflow from a mechanical process to a conversational, intent-driven interaction. Instead of manually placing shapes, users can now describe ideas in natural language, allowing the AI to generate, refine, and analyze diagrams instantly.

This comprehensive guide explores how to navigate this upgrade, detailing the key differences between traditional and AI approaches, the benefits of making the switch, and a step-by-step workflow for integrating AI into your modeling practices.

Comparison: Traditional vs. AI-Generative Modeling

To understand the magnitude of this upgrade, it is essential to compare the mechanics of the traditional workflow against the new AI-driven capabilities. While traditional methods offer granular control, AI modeling focuses on speed, interpretation, and automation.

Feature	Traditional Modeling	AI-Generative Modeling
Input Method	Manual interaction via desktop/online editor (drag-and-drop, connection points).	Natural language prompts (e.g., “Create a class diagram for a library system”).
Primary Focus	High precision, final refinements, and strict standards compliance (UML 2.5, BPMN).	Rapid prototyping, reducing cognitive load, and handling initial structures.
Speed	Time-intensive, especially for large models or starting from scratch.	Instant generation of complex diagrams in seconds.
Refinement Process	Manual iteration and layout adjustments.	Conversational refinement (e.g., “Add inheritance between User and Admin”).
Supported Notations	Full support for UML, BPMN, ArchiMate, etc.	Extensive support including UML, C4 models, ArchiMate, SysML, ERDs, and Mind Maps.
Skill Requirement	Requires deep knowledge of notation syntax and tool mechanics.	Lowers barrier to entry; amplifies existing skills by automating syntax.

It is important to note that AI does not replace traditional skills; it amplifies them. Professionals who understand UML notations and architectural patterns are best positioned to use these tools, as they can spot inaccuracies faster, craft superior prompts, and validate outputs effectively.

Why Upgrade? The Professional Benefits

Adopting AI-generative modeling in Visual Paradigm is not just about keeping up with trends; it is about tangible improvements in workflow efficiency and output quality. Based on user feedback and platform capabilities, the following benefits are driving professionals to upgrade:

• Unmatched Speed: The ability to generate complex diagrams in seconds rather than hours transforms the early stages of a project. This speed is invaluable for kickoff meetings, brainstorming sessions, and rapid prototyping.
• Productivity Boost: AI automates the boilerplate work. For example, extracting classes and relationships from a text-based requirements document can be done instantly, freeing architects to focus on high-level design decisions.
• Iterative Collaboration: The chat-like interface acts as a “modeling partner.” It allows for real-time tweaks during collaborative sessions, where changes can be requested verbally and implemented immediately by the AI.
• Consistency & Standards: The AI is trained to respect UML and BPMN rules. While human oversight is still required, the AI handles basic validation, ensuring that naming conventions and standard relationships are applied correctly from the start.
• Seamless Integration: One of the strongest features of Visual Paradigm is that AI-generated diagrams are not static images. They can be exported directly into Visual Paradigm projects for code generation, Object-Relational Mapping (ORM) with Hibernate/JPA, simulation, and round-trip engineering.

Users consistently report 5–10x faster initial modeling, particularly when dealing with large-scale architectures or translating unstructured requirements into visual models.

Step-by-Step Guide: Transitioning to AI in Visual Paradigm

Upgrading your workflow does not require a complex migration or a new subscription tier for basic features. AI capabilities are integrated into recent versions (18.0+) and VP Online. Follow this guide to begin your transition.

1. Accessing the AI Tools

There are multiple entry points to the AI features, designed to fit different workflow preferences:

• The AI Chatbot: This is the primary entry point for generative work. It is a browser-based tool available at specific Visual Paradigm subdomains (e.g., chat.visual-paradigm.com). It works as a standalone tool but links to your projects.
• Desktop & Online Integration: Within the Visual Paradigm interface, navigate to Tools > AI Chatbot or Tools > AI Diagram. You may also find these features in the AI toolbox.
• Licensing: A free tier is often available for basic usage. However, logging in with a Pro or Enterprise account unlocks advanced capabilities, such as unlimited generations and advanced export options.

2. Starting Simple: The First Prompt

To acclimate to the new intent-driven process, start with familiar diagram types. Avoid over-complicating your first attempt.

Example Prompt: “Generate a UML class diagram for an online shopping cart system including User, Product, Cart, and Order.”

Upon submitting this prompt, the AI will produce classes, attributes, operations, and associations, often applying a clean auto-layout. From here, you can practice conversational refinement:

• “Add multiplicity 1..* to the association between Cart and Product.”
• “Make Order inherit from a new class called Payment.”
• “Improve the layout to avoid overlapping lines.”

3. Leveraging Textual Analysis

One of the most powerful features for professionals is the AI-Powered Textual Analysis. Instead of manually parsing a requirements document, you can feed the text directly to the AI.

Workflow: Paste a segment of a requirements document into the chatbot.
Prompt: “Analyze this requirements text and generate a class diagram based on the entities and relationships described.”

The AI will identify domain entities and relationships automatically, providing a structured visual representation of the unstructured text.

4. Iteration and Professional Refinement

Once the base model is generated, the workflow shifts to iteration. Use follow-up commands to expand the model’s scope or utility:

• Behavioral Modeling: “Add a sequence diagram for the checkout process based on these classes.”
• Documentation: “Generate documentation from this model.”
• Interoperability: “Export this diagram to PlantUML.”

Crucially, you should import the AI-generated result back into the traditional editor. This allows for fine-tuning, strict validation, and utilization of advanced features like code generation.

5. Advanced Workflows

For enterprise-level users, the AI tools extend beyond basic UML:

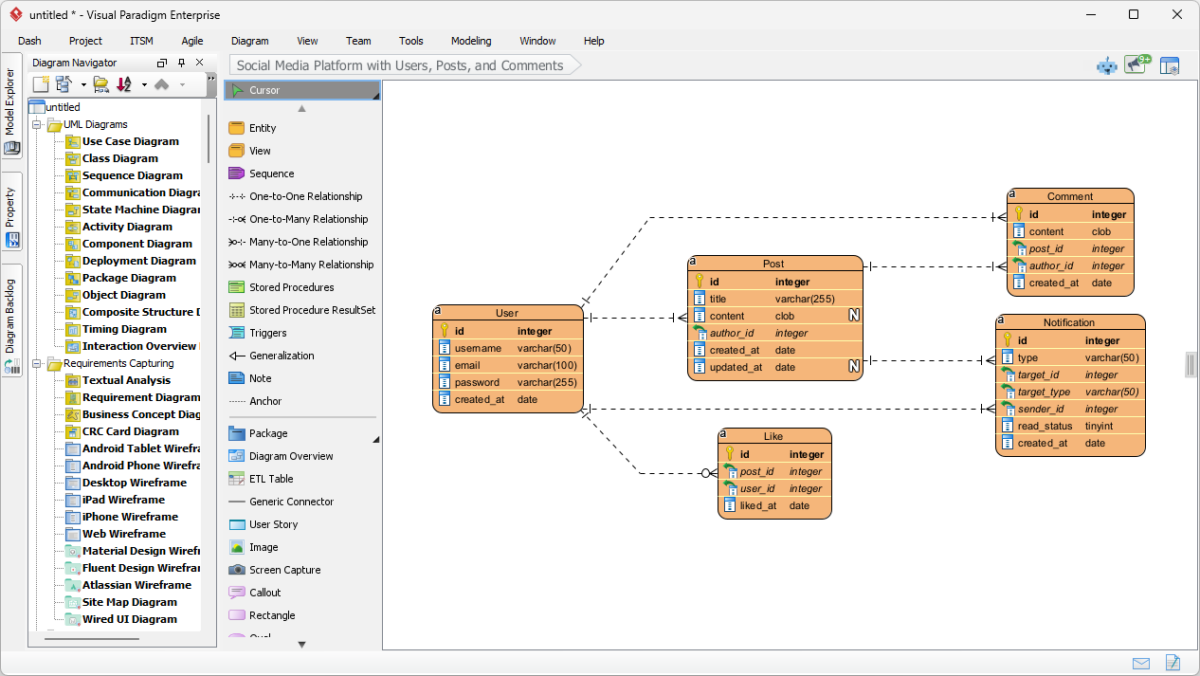

• DBModeler AI: Use this for database design. Describe your application’s data needs, and the tool will generate a normalized Entity-Relationship Diagram (ERD) and corresponding class diagram.
• Use Case Modeling Studio: This feature handles full flow generation. You can start with a goal statement, and the AI will generate use cases, diagrams, and even test cases.
• C4 Architecture: For high-level software architecture, prompt for layered views. Example: “Create a C4 component diagram for a microservices-based banking app.”

Best Practices for a Smooth Transition

To maximize the efficacy of AI in Visual Paradigm, consider the following best practices:

1. Be Specific in Prompts: Ambiguity leads to generic results. Always include the diagram type, key entities, and specific relationships in your initial prompt.
2. Human-in-the-Loop Validation: Always review AI outputs. Check cardinalities, stereotypes, and constraints against project requirements. The AI is a tool for speed, not a replacement for architectural responsibility.
3. Hybrid Workflow: The most effective professionals export AI drafts into the main project to blend approaches. Use AI for the “heavy lifting” of creation and traditional tools for the precision of finalization.
4. Retain Traditional Knowledge: Your understanding of UML and modeling theory is what allows you to craft effective prompts and catch subtle errors in the AI’s logic.

Practical Examples

Here are specific scenarios where AI generation excels, matching common professional queries:

• UML Class Diagrams: Paste a problem description (e.g., a hotel reservation system) and watch the AI extract classes, attributes, methods, and relationships instantly.
• C4 Architecture: Prompting “Generate C4 model (Context + Containers + Components) for an e-commerce platform” yields layered views from a single interaction, saving hours of setup time.
• State Machines: Describe a lifecycle, such as “Create a UML state machine for a 3D printer process: idle → printing → paused → error handling,” to visualize complex logic flows.
• Database Design: Using DBModeler AI to convert a description of application needs into a fully normalized ERD.

User Experiences & Testimonials (2025–2026)

The reception of these features within the Visual Paradigm community has been overwhelmingly positive. Feedback from blogs, tutorials, and platform testimonials highlights the real-world impact:

Maria Thompson, Solution Architect: “I used to spend hours sketching system contexts. Now I focus on architecture decisions while AI handles the drawing. It has completely changed how I approach the initial phases of a project.”

Daniel Rivera, Project Manager: “Turning diagrams into reports with one command saves hours during reviews—the workflow is much more efficient.”

Tutorial users and developers echo these sentiments. Beginners appreciate the “chat with an expert” feel, which guides them through creating complex sequence diagrams with branching logic. Experienced users praise the iterative refinement capabilities, noting that they can generate a model, review it, command “add error handling,” and arrive at a perfect diagram in under five minutes. The consensus indicates an 80–90% time saving on initial drafts, with the tool feeling less like software and more like a “knowledgeable colleague.”

Conclusion

Transitioning to AI-powered modeling in Visual Paradigm is a strategic upgrade for any software professional. By combining the speed of generative AI with the precision of traditional editing tools, users can achieve a workflow that is both rapid and robust. Whether you are modeling a simple library system or a complex microservices architecture, the AI tools provide a foundation that lets you focus on high-value design decisions rather than manual drawing.

• AI-Assisted UML Class Diagram Generator – Visual Paradigm AI Toolbox: This AI-powered tool generates UML class diagrams from text descriptions while requiring minimal manual input.

• From Problem Description to Class Diagram: AI-Powered Textual Analysis: Visual Paradigm’s AI-powered textual analysis converts natural language problem descriptions into accurate class diagrams.

• Identifying Domain Classes Using AI Textual Analysis in Visual Paradigm: AI tools in Visual Paradigm automatically identify domain classes from unstructured text to streamline the software modeling process.

• How AI Enhances Class Diagram Creation in Visual Paradigm: Artificial intelligence automates the design and improves the accuracy of class diagram creation with minimal user input.

• Streamlining Class Diagrams with Visual Paradigm’s AI: AI tools within the platform reduce the time and complexity required to create accurate class diagrams for software projects.

• Real-Life Case Study: Generating UML Class Diagrams with Visual Paradigm AI: This case study demonstrates how the AI assistant successfully converts textual requirements into precise UML class diagrams for real-world projects.

• Case Study: AI-Powered Textual Analysis for UML Class Diagram Generation: AI-driven textual analysis enables the efficient generation of UML class diagrams from unstructured requirements documentation.

• Comprehensive Tutorial: Generate UML Class Diagrams with Visual Paradigm’s AI Assistant: This step-by-step guide teaches users how to create accurate UML class diagrams from plain text using the AI assistant.

• Creating a UML Class Diagram for a Library System Using AI and Visual Paradigm: This tutorial provides guided instructions for building a UML class diagram for a library management system using AI tools.

• Building a Hotel Reservation System Class Diagram with Visual Paradigm AI: This resource demonstrates how to utilize AI features to create a class diagram specifically for a hotel reservation system.
