Mastering Visual Paradigm’s AI-Powered Textual Analysis: A Comprehensive Guide to Rapid UML Modeling (2025–2026)

In today’s fast-paced software development landscape, speed, accuracy, and clarity are paramount. Traditional UML modeling can be time-consuming—especially during early design phases—requiring hours of analysis, brainstorming, and iteration. Enter Visual Paradigm’s AI-Powered Textual Analysis Tool, a revolutionary feature that transforms a high-level idea into a structured, AI-generated UML Class Diagram in minutes.

This comprehensive guide walks you through every step of using this powerful AI-driven tool, based on the latest video tutorial (circa September 2025) and official Visual Paradigm documentation. Whether you’re a software engineer, system designer, business analyst, or student learning UML, this tool streamlines your workflow and accelerates project kickoff.

🔧 Overview: What Is AI-Powered Textual Analysis?

AI-Powered Textual Analysis is an intelligent feature within Visual Paradigm that leverages advanced natural language processing (NLP) and large language models (LLMs) to analyze a plain-text problem description and automatically generate:

Candidate UML classes
Class attributes and operations
Relationships between classes (e.g., association, inheritance, aggregation)
A fully editable UML Class Diagram

This capability allows developers and analysts to jump from idea to visual model without writing a single line of code—ideal for rapid prototyping, requirements analysis, and educational use.

✅ Ideal for:

Early-stage domain modeling

Agile sprint planning

Teaching UML to beginners

Reverse engineering from documentation

Integrating AI into SDLC workflows

📌 Prerequisites: Getting Started

Before diving in, ensure you have the following:

Requirement	Details
Software	Visual Paradigm Desktop (Professional or Enterprise edition recommended)
Download	Free 30-day trial: https://www.visual-paradigm.com/download
Internet Connection	Required (AI processing runs on cloud servers)
Access Path	`Tools > Apps` → Select Software Development category → Find Textual Analysis
Optional Integration	Visual Paradigm Online (for collaboration, export, and advanced editing)

💡 Pro Tip: Use the cloud integration to save your work and continue editing in the browser-based environment.

🔄 Step-by-Step Workflow: From Idea to Class Diagram

Follow this structured, iterative process to generate accurate and meaningful UML models using AI.

Step 1: Launch the AI Textual Analysis Tool

Open Visual Paradigm Desktop.
Navigate to:
Tools > Apps → Select Software Development tab.
Scroll to page 2 (or use the search bar) to locate Textual Analysis (AI-powered).
Click Start Now.

🖥️ The interface opens with a clean, intuitive layout:

Left panel: Input fields and controls

Right panel: Real-time results and visual feedback

Step 2: Generate or Refine the Problem Description

The AI begins by generating a detailed problem description based on your initial prompt.

🔹 Enter a Domain Prompt

Input a concise name or goal:

"Online Shopping Platform"
"Student Registration System"
"Hospital Patient Management"

🔹 Click: Generate Problem Description

The AI instantly produces a paragraph (100–150 words) summarizing the system’s purpose, stakeholders, core features, and constraints.

✅ Example Output:
“The Online Shopping Platform enables customers to browse products, add items to a shopping cart, and complete purchases via secure payment gateways. Administrators manage inventory, view order history, and generate sales reports. Each customer has a profile with personal details and shipping address. Products are categorized, with attributes like name, price, stock quantity, and description. Orders are linked to customers and contain multiple line items. The system must support user authentication, role-based access control, and an analytics dashboard for administrators.”

✅ Critical Best Practice: Edit the Generated Text

The AI-generated description is a starting point, not a final version.

🔧 Enhance it with domain-specific details:

Add: “The system must include an analytics dashboard for administrators to view usage statistics and sales trends.”

Add: “Users must be able to reset passwords via email verification.”

Add: “Orders are categorized into pending, shipped, and delivered statuses.”

✅ Why It Matters: Small edits significantly improve the quality of class extraction, attribute suggestions, and relationship detection.

Step 3: Identify Candidate Classes

Click Identify Candidate Classes.

The AI scans the text and extracts potential domain entities (nouns) and concepts.

📋 Output: List of Candidate Classes

Each entry includes:

Class Name (e.g., Customer, Product, Order)
Reason for Selection (e.g., “appears 5 times in the description”, “central to the domain”)
Brief Description (e.g., “Represents a user who buys products”)

🧠 Example:

Customer: “Frequent noun; represents a user of the system”

PaymentGateway: “Mentioned in context of transaction processing”

Inventory: “Key component for managing product availability”

✅ Review & Refine

Deselect irrelevant entries (e.g., generic terms like “system”, “data”).
Add missing ones manually (e.g., ShoppingCart, OrderStatus).

🛠️ Tip: Use this step to correct AI hallucinations—if it missed a key entity, add it now.

Step 4: Identify Class Details (Attributes & Operations)

Click Identify Class Details.

For each class, the AI proposes:

Attributes (data fields): e.g., name: String, email: String, price: Double
Operations (methods): e.g., placeOrder(), calculateTotal(), updateStock()

📊 Example Output for `Order`:

Attribute	Type	Description
`orderId`	String	Unique identifier
`orderDate`	Date	Date when order was placed
`status`	OrderStatus	Current state of the order

Operation	Parameters	Returns
`addLineItem(item: Item, quantity: int)`	Item, int	void
`calculateTotal()`	—	Double
`updateStatus(newStatus: OrderStatus)`	OrderStatus	void

✅ Review Tips:

Confirm data types (e.g., use LocalDateTime instead of Date for precision).

Adjust method names to match coding conventions (e.g., getTotal() vs calculateTotal()).

Add missing operations like cancelOrder() or applyDiscount().

Step 5: Identify Class Relationships

Click Identify Class Relationships.

The AI analyzes interactions, dependencies, and ownership patterns in the text and proposes relationships such as:

Relationship Type	Description
Association	A general link between two classes (e.g., `Customer` places `Order`)
Aggregation	“Has-a” relationship (e.g., `ShoppingCart` contains `Product`)
Composition	Stronger “owns” relationship (e.g., `Order` contains `LineItem`)
Generalization (Inheritance)	`Admin` extends `User`
Dependency	One class uses another (e.g., `PaymentService` depends on `PaymentGateway`)

📋 Example Output:

Source	Target	Type	Explanation
`Customer`	`Order`	Association	“Customer places multiple orders”
`Order`	`LineItem`	Composition	“Order contains line items”
`Admin`	`User`	Generalization	“Admin is a type of user”
`PaymentService`	`PaymentGateway`	Dependency	“Uses gateway to process payments”

✅ Verify Accuracy:

Ensure composition is used for exclusive ownership.

Use inheritance only when is-a relationships exist.

Replace weak associations with more specific roles (e.g., Order → Customer via placedBy).

Step 6: Generate the Class Diagram

Click Generate Diagram.

The tool assembles all elements into a clean, readable UML Class Diagram.

✅ Features of the Generated Diagram:

Auto-layout: Intelligent placement of classes and relationships
Expandable Details: Click any class to view attributes and operations
Editable: All elements can be modified directly in the editor
Color-coded: Differentiates between entities, interfaces, and abstract classes

🎯 You now have a fully functional, AI-generated class diagram ready for:

Further refinement

Code generation

Integration with other diagrams (e.g., Use Case, Sequence)

Documentation and team sharing

Step 7: Iterate and Refine (Recommended)

One of the most powerful aspects of this tool is its iterative design capability.

🔁 How to Iterate:

Go back to the Problem Description tab.
Modify the text:
- Add: “The system must support user roles: Customer, Admin, and Support Agent.”
- Add: “Customers can rate products after purchase.”
Re-run:
- Identify Candidate Classes
- Identify Class Details
- Identify Class Relationships
- Generate Diagram

🔄 Result: The diagram updates dynamically, reflecting new entities (UserRole, Review) and relationships (Customer → Review, Admin → SupportAgent).

🎯 Use Case: You’re designing a learning management system and realize you need to model courses, enrollments, and grades—just edit the prompt and regenerate.

Step 8: Export & Further Edit in Visual Paradigm Online

To unlock full editing power and collaboration:

📤 Export to Visual Paradigm Online

In the generated diagram, click the cloud icon (top-left corner).
Choose Save to Visual Paradigm Online.
Log in or create an account if needed.
The diagram is saved to your online workspace.

🔄 Import Back to Desktop

Return to Visual Paradigm Desktop.
Go to: Team > Import from Web Diagram
Select your saved diagram from the list.
Click Import.

✅ Now you can:

Use advanced layout tools

Add notes, constraints, and stereotypes

Generate code (Java, C#, Python, etc.)

Reverse engineer from existing code

Integrate with Use Case, Sequence, or Component diagrams

🌟 Benefits & Advantages

Benefit	Explanation
⚡ Speed	From idea to class diagram in under 5 minutes
🤖 Intelligence	AI explains why a class or relationship was selected
🔁 Iterative Design	Easily refine based on feedback or new requirements
🎓 Learning Aid	Great for students to understand UML structure and domain modeling
🔄 Seamless Integration	Works with other VP AI tools (e.g., AI Use Case Generator, AI Chatbot)
📊 Explainability	Transparent reasoning behind AI choices improves trust

🛠️ Best Practices & Pro Tips

Start Simple: Begin with a clear, focused prompt like "ATM System" or "Hotel Booking App".
Be Specific: Add key verbs and nouns (e.g., “withdraw money”, “reserve a room”).
Use Realistic Scenarios: Include roles, workflows, and constraints.
Review Every Output: AI is assistive—never assume correctness.
Combine with Other AI Tools:
- Use AI Use Case Generator to create user stories.
- Use AI Chatbot to explain or debug your diagram.
Save Iterations: Export each version to track evolution of your model.
Use Sample Prompts:
- "E-commerce Platform with User Roles, Shopping Cart, and Payment Processing"
- "University Course Registration System with Timetables and Grades"
- "Fitness Tracker App for Monitoring Workouts and Health Metrics"

📘 Use Case Example: Building a Library Management System

Let’s walk through a quick example.

📌 Prompt:

“Library Management System”

📝 Enhanced Description:

“The Library Management System allows librarians to manage books, borrowers, and loans. Each book has a title, ISBN, author, and availability status. Borrowers are registered users who can borrow up to 5 books at a time. Loans are tracked with due dates and late fees. The system must support searching by title, author, or keyword. Librarians can add, update, or remove books. A borrower can return a book, and the system calculates late fees if overdue.”

📌 AI Output Highlights:

Classes: Book, Borrower, Loan, Librarian, SearchEngine
Attributes: dueDate: Date, isOverdue: Boolean, lateFee: Double
Operations: calculateLateFee(), checkAvailability(), searchByKeyword()
Relationships:
- Borrower → Loan (association)
- Book → Loan (composition)
- Librarian → Book (manages)

✅ Result: A complete, production-ready class diagram in minutes.

🌐 Additional Resources

Resource	Link
Official AI Tools Hub	https://ai.visual-paradigm.com
Textual Analysis Feature Page	https://www.visual-paradigm.com/features/ai-textual-analysis
Video Tutorial (YouTube)	VisualParadigm YouTube Channel
Community Forum & Support	https://forum.visual-paradigm.com
Free Learning Modules	https://learn.visual-paradigm.com

✅ Conclusion: Empower Your Design with AI

Visual Paradigm’s AI-Powered Textual Analysis Tool is not just a novelty—it’s a game-changer for software design.

By turning plain-language descriptions into structured UML models, it:

Saves hours of manual effort
Reduces modeling errors
Accelerates collaboration
Demystifies UML for beginners

Whether you’re a solo developer prototyping a startup idea, a business analyst capturing requirements, or a professor teaching software engineering, this tool empowers you to think faster, model smarter, and build better.

🚀 Start today: Download the 30-day free trial and turn your next idea into a UML diagram in minutes.

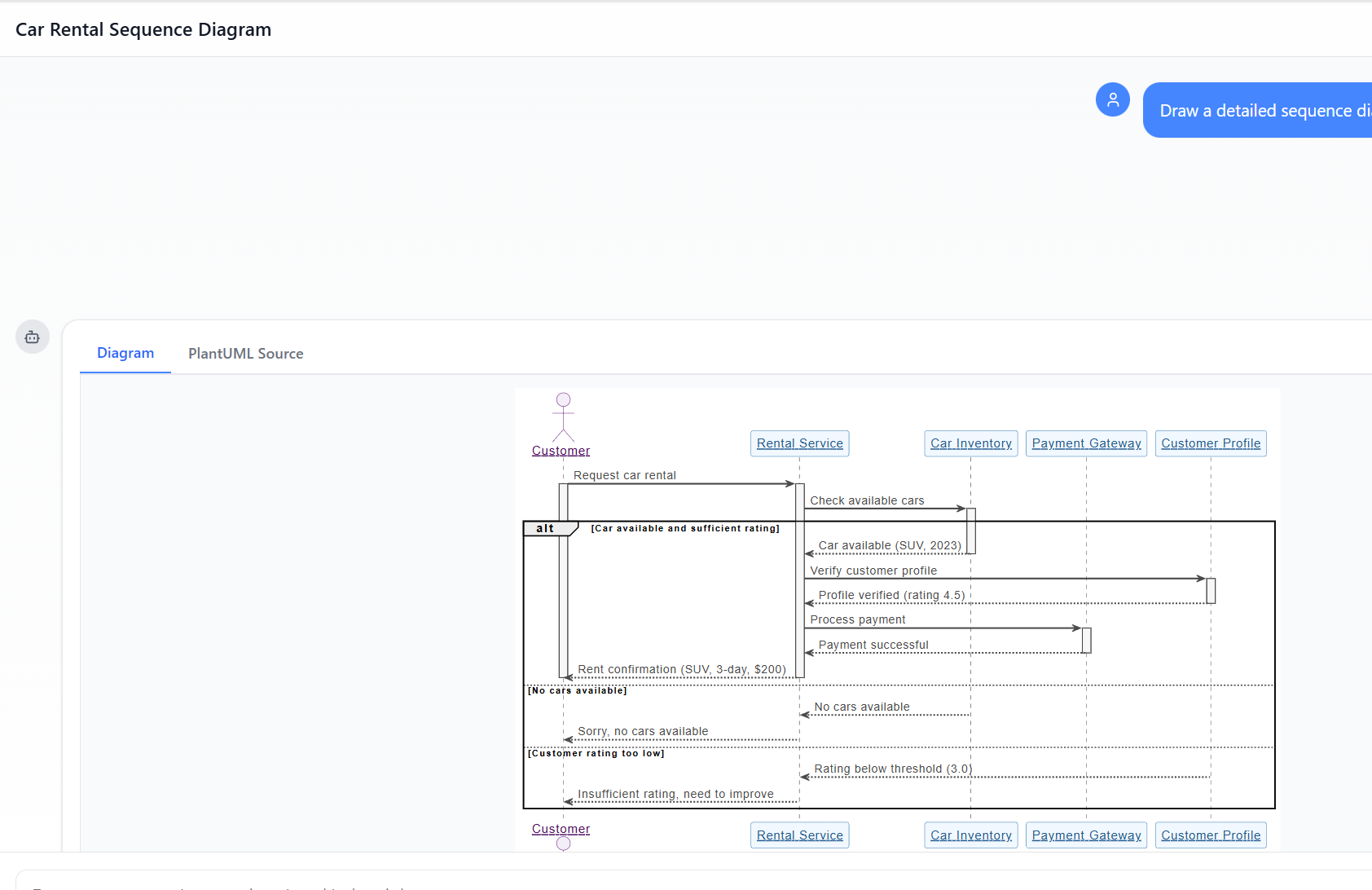

Visual Paradigm AI Chatbot: A Professional Guide to AI-Powered Visual Modeling

Overview

The Visual Paradigm AI Chatbot is an AI-driven visual modeling assistant developed by Visual Paradigm, a leading provider of UML, enterprise architecture, and diagramming solutions. Designed specifically for visual modeling workflows, this intelligent tool excels at generating, refining, explaining, and analyzing diagrams—particularly UML diagrams (e.g., Sequence, Class, Use Case, Activity, State Machine, Component, Deployment), as well as other industry-standard models such as ArchiMate, SysML, C4 Model, Mind Maps, SWOT/PESTLE frameworks, and more.

Unlike general-purpose AI assistants (e.g., ChatGPT), the Visual Paradigm AI Chatbot is purpose-built for diagram-centric design and documentation, with deep expertise in:

UML notation and semantics
Interaction fragments (alt, opt, loop, ref)
Lifelines, message flows, activation bars
Conditional logic and error handling

It transforms natural language descriptions into clean, accurate, and professionally rendered diagrams in seconds, supporting iterative refinement through conversational feedback.

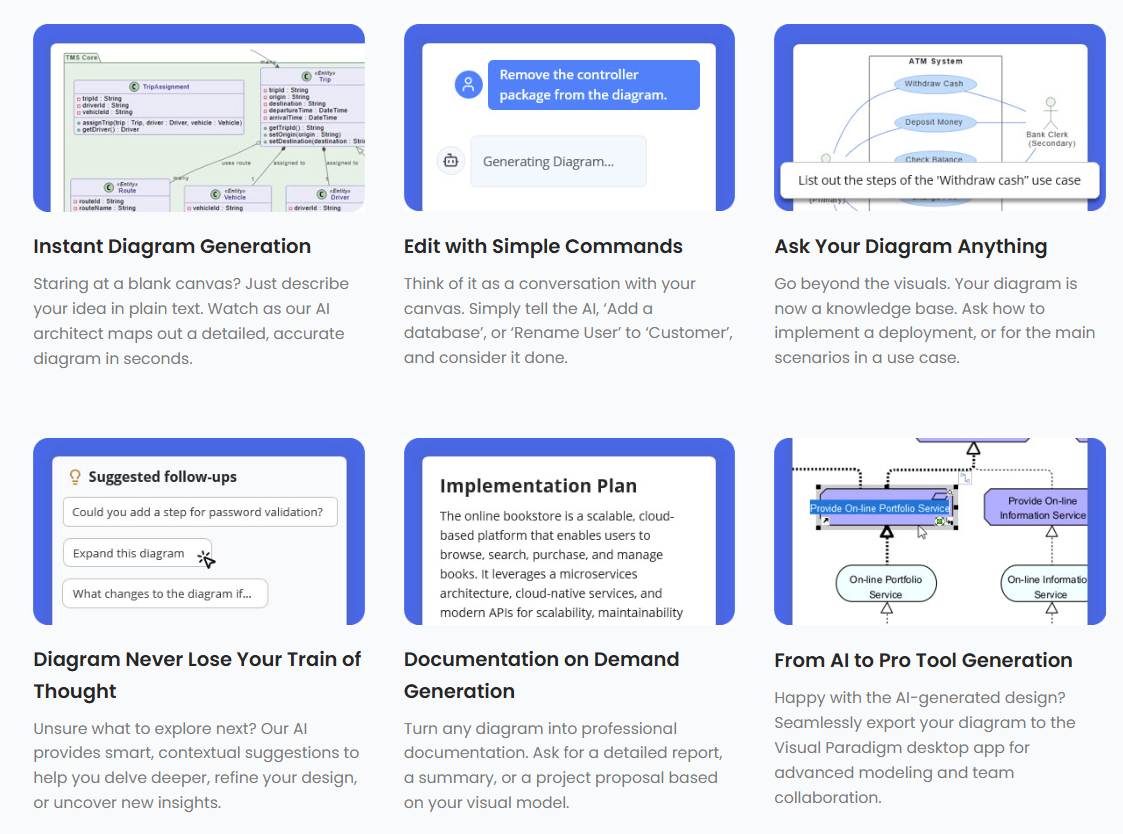

✅ Key Features

Feature	Description
Instant Diagram Generation	Describe a business process or system interaction in plain English → receive a fully rendered UML diagram within seconds.
Conversational Refinement	Iteratively improve diagrams via follow-up prompts: add branches, rename participants, adjust logic, or restructure layout—no need to restart.
Explain & Understand	Ask “Explain this diagram” → receive a clear, step-by-step breakdown of flows, messages, decision points, and control logic.
Multi-Diagram Support	Fully supports: Sequence, Class, Use Case, Activity, State, Communication, Object, Package, Deployment, Component, and more.
Smart Error & Flow Handling	Automatically applies `alt`, `opt`, `loop`, and `ref` fragments to represent success paths, exceptions, retries, and validations.
Seamless Integration with Visual Paradigm	Export or import diagrams directly into Visual Paradigm Online or Desktop for advanced editing, collaboration, versioning, and documentation.
PlantUML Source View	Toggle to view or edit the underlying PlantUML code—ideal for developers, version control, and automation.
Multi-Language Support	Accepts prompts and generates diagrams in multiple languages (English, Chinese, Spanish, French, German, Japanese, Korean, etc.).

🛠️ Step-by-Step Guide: How to Use the Visual Paradigm AI Chatbot

1. Access the Chatbot

Web Version (Free): Visit https://chat.visual-paradigm.com/ – no installation required.
Integrated Access: Launch from Visual Paradigm Online/Desktop → Tools → AI Chatbot (available with active license/project).
Alternative Entry: https://ai-toolbox.visual-paradigm.com/app/chatbot/

✅ No login needed for basic use. Sign-in enables saving chats and exporting to your workspace.

2. Start a New or Continue an Existing Chat

Click + New Chat to begin fresh.
Or continue from an existing conversation for ongoing modeling tasks.

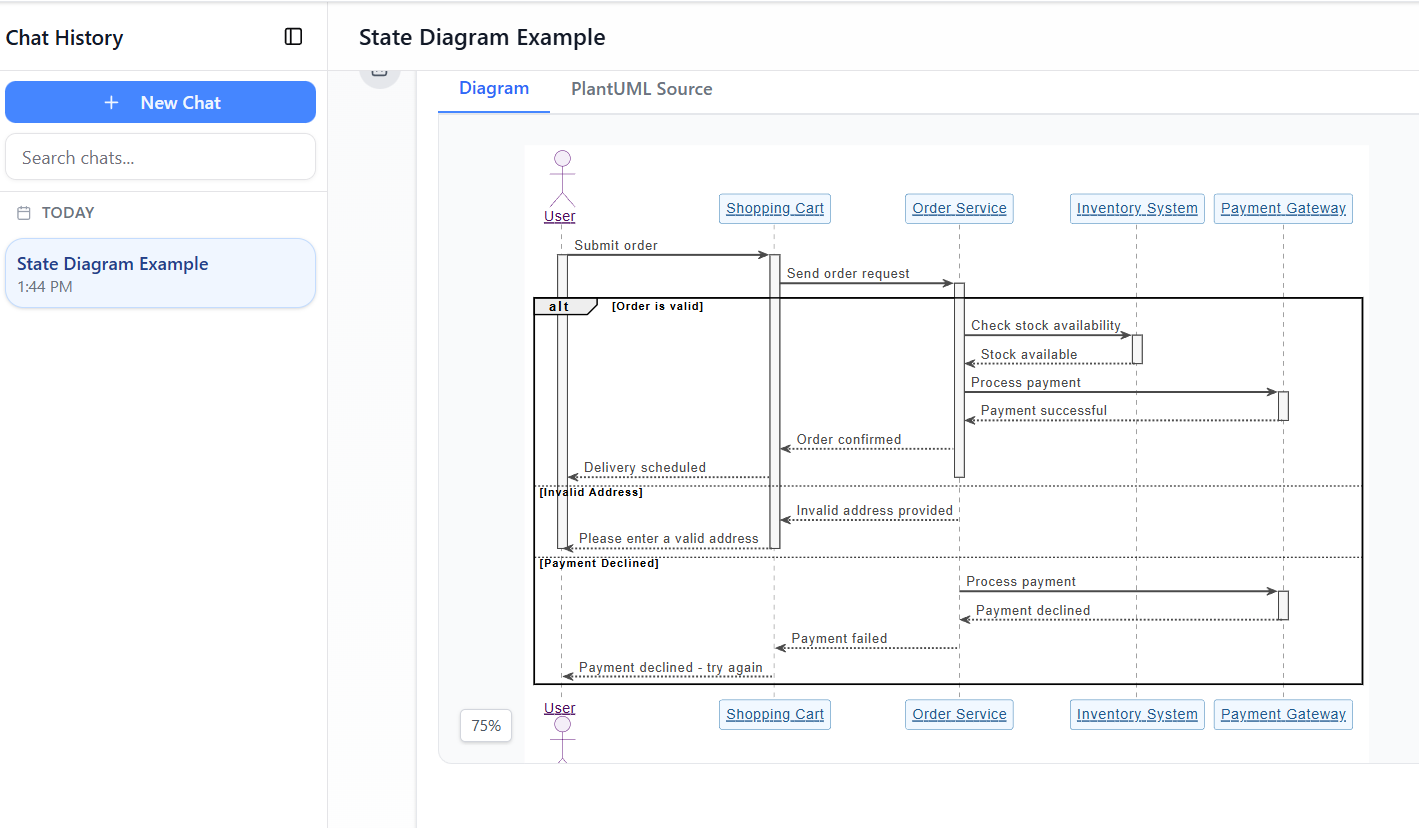

The interface includes:

Chat history (for context retention)
Diagram preview (rendered in real-time)
Tabs: Diagram | PlantUML Source
Zoom controls and export options

3. Generate a Diagram (Core Prompt)

Enter a clear, descriptive natural language prompt. Examples that work best:

📌 “Draw a detailed sequence diagram for a car rental process involving Customer, Rental Service, Car Inventory, Payment Gateway, and Customer Profile.”

📌 “Generate a UML sequence diagram for online flight booking: user selects flight → checks seat availability → proceeds to payment → confirms or fails.”

📌 “Create a sequence diagram: user places order → shopping cart validates items → order service checks inventory → payment gateway processes charge → confirmation sent.”

💡 Tip: Be specific about participants, message order, conditions, and outcomes.

👉 Result: The AI generates a fully formatted diagram in 5–15 seconds, complete with:

Proper lifelines
Solid lines for synchronous messages
Dotted lines for return messages
Activation bars for active processing
alt, opt, and loop fragments for branching logic

🔍 Example Output: Your car rental diagram includes conditional branches for:

Success (car available + rating ≥ 3.0)

No cars available

Low rating (< 3.0)
All handled using alt fragments — demonstrating intelligent error and flow management.

4. Refine Iteratively (Conversational Power)

Use follow-up prompts to evolve your diagram:

Prompt	Effect
“Add an alternative path when payment is declined.”	AI adds a new `alt` branch with error message and retry option.
“Include model year and color in the car confirmation message.”	Updates message text dynamically.
“Change the rating threshold from 3.0 to 4.0.”	Adjusts condition in `alt` fragment.
“Add a loop for up to 3 attempts to select a car.”	Introduces `loop` fragment around selection process.
“Explain the ‘Customer rating too low’ branch.”	Returns a detailed explanation of the logic and impact.

✅ No re-generation needed—changes are applied instantly in context.

5. Analyze & Explain Diagrams

Use these prompts to deepen understanding:

"Explain this sequence diagram step by step."
"What does the 'alt' fragment represent here?"
"Summarize the success path from start to confirmation."
"Identify all error conditions and how they’re handled."

This feature is especially valuable for:

Students learning UML
Teams reviewing system interactions
Documentation and onboarding

6. Export & Integrate into Projects

Once satisfied, export or integrate your diagram:

Option	Use Case
Export as PNG/SVG/PDF	For reports, presentations, or sharing.
View PlantUML Source	Copy code for version control, embedding in Markdown/docs, or reuse in other tools.
Import to Visual Paradigm	Fully edit in the desktop or online IDE—add constraints, stereotypes, links to other diagrams, or generate code.

🔄 Pro Tip: Use the exported PlantUML code in CI/CD pipelines, documentation generators (e.g., MkDocs, Docusaurus), or collaborative wikis.

🌟 User Experience: Why Teams Love It

“It’s like having a senior architect in the chat.” – Software Architect, Global Tech Firm

✅ Real-World Benefits

Benefit	Impact
Speed & Productivity	What once took 20–60 minutes of manual diagramming now takes 1–5 minutes of conversation. Ideal for prototyping, sprint planning, and design sprints.
Beginner-Friendly	No need to memorize UML syntax—just describe the process naturally. The AI enforces correct notation automatically.
Low-Friction Iteration	Refine logic, add conditions, or adjust flow in real time—no context loss.
Accurate Complex Logic	Handles real-world scenarios: inventory checks, payment failures, rating validations, retry loops—with proper `alt`/`loop` usage.
Learning Accelerator	Explaining diagrams back to users helps solidify understanding of UML concepts.
Error Resilience	AI anticipates common pitfalls (e.g., missing error paths) and includes them proactively.

⚠️ Note: While highly accurate, extremely complex or highly customized layouts may still benefit from final manual adjustments in Visual Paradigm Desktop/Online.

📌 Best Practices for Optimal Results

Be Specific: Include participants, actions, conditions, and expected outcomes.
Use Clear Language: Avoid vague terms like “something happens” → say “the system validates the user’s credentials.”
Break Down Complex Scenarios: Start with the main flow, then add branches (e.g., success, failure, retry).
Leverage Follow-Ups: Don’t hesitate to iterate—each prompt refines the model.
Use PlantUML Mode for Code Integration: When working in documentation or automation, switch to PlantUML Source to extract clean code.

🏁 Conclusion: The Future of Visual Modeling is Conversational

The Visual Paradigm AI Chatbot redefines how professionals approach visual modeling. By turning natural language into precise, structured diagrams—complete with intelligent flow control, error handling, and real-time refinement—it bridges the gap between business requirements, technical design, and development execution.

Whether you’re a developer, system architect, business analyst, or student, this tool empowers you to:

Design faster
Communicate clearer
Learn better
Collaborate smarter

🎯 Final Thought: Visual modeling is no longer a barrier—it’s a conversation.

🔧 Need Help? Try This Prompt!

“Generate a UML sequence diagram for a user login process: user enters email/password → system validates credentials → if valid, redirect to dashboard; if invalid, show error message and allow retry up to 3 times.”

👉 Paste this into the chatbot and see how quickly you get a polished, production-ready diagram.

📬 Have a Scenario in Mind? Let’s Build It Together

If you’d like help crafting the perfect prompt for your use case—whether it’s for banking systems, e-commerce workflows, IoT device interaction, or enterprise architecture modeling—just share your idea, and I’ll help you write the optimal input for the Visual Paradigm AI Chatbot.

📞 Explore Now: https://chat.visual-paradigm.com
📚 Learn More: https://www.visual-paradigm.com
💬 Join the Community: Thousands of users worldwide use the AI Chatbot daily for faster, smarter modeling.

Visual Paradigm AI Chatbot – Where Ideas Become Diagrams, Instantly. 🚀

AI Chatbot Feature – Intelligent Assistance for Visual Paradigm Users: This article introduces the core chatbot functionality designed to provide instant guidance and automate tasks to enhance user productivity.
Visual Paradigm Chat – AI-Powered Interactive Design Assistant: An overview of an interactive AI interface that assists users in generating diagrams, writing code, and solving design challenges in real time.
AI Chatbot for Diagramming: How It Works with Visual Paradigm: This resource explains how the chatbot acts as a modeling assistant that turns natural language into diagrams, removing the need for users to learn specific modeling standards or syntax.
Visual Paradigm AI Chatbot Enhances Multi-Language Support: A release update detailing the addition of multi-language UI and improved chat content localization, allowing for AI diagram generation in languages such as Spanish, French, and Chinese.
Case Study: Enhancing System Modeling Efficiency with Visual Paradigm’s AI-Powered Chatbot: A detailed study demonstrating how the chatbot improves productivity and accuracy in system modeling through conversational diagram creation.
Visual Paradigm AI Chatbot: The World’s First Purpose-Built AI Assistant for Visual Modeling: This article highlights the launch of a groundbreaking AI assistant tailored specifically for visual modeling with intelligent guidance.
How to Turn Requirements into Diagrams with an AI Chatbot: This guide explores how project requirements can be evolved from simple text into full system designs through the conversational interface.
How AI Chatbot Can Help You Learn UML Faster: An educational post describing how users can practice UML interactively and receive instant feedback to improve their skills using the AI assistant.
AI in Architecture Modeling: Keeping Complex Systems Aligned: This article discusses how the chatbot interprets instructions in context to maintain naming consistency and connection logic during complex system revisions.
The Future of Collaborative Modeling: AI as Your Team’s Co-Designer: A discussion on how the chatbot empowers teams to create standards-compliant diagrams and share structured insights in a collaborative way.

A Case Study: Modeling an E-Commerce Order Submission Process with UML Sequence Diagrams Using Visual Paradigm’s AI Chatbot

Introduction to UML and Sequence Diagrams

The Unified Modeling Language (UML) is a standardized modeling language used in software engineering to visualize, specify, construct, and document systems. Among UML’s 14 diagram types, sequence diagrams belong to the interaction diagrams category. They emphasize the dynamic behavior of a system by illustrating how objects (or actors and components) interact over time through message exchanges.

Sequence diagrams are particularly valuable for capturing the order of operations, message flows, conditional logic (e.g., alternatives or loops), and error handling in use cases. Unlike class diagrams (which show static structure), sequence diagrams focus on runtime interactions, making them ideal for scenarios involving multiple participants, such as user flows, API calls, or microservices communication.

Key Concepts in Sequence Diagrams

Here are the core elements of a UML sequence diagram:

Lifelines: Vertical dashed lines representing participants (objects, actors, or systems) over time. Time flows from top to bottom.
Messages: Horizontal arrows indicating communication. Solid arrows typically denote synchronous calls (with expected return), dashed arrows show asynchronous messages or returns.
Activation Bars (Execution Specifications): Thin rectangles on lifelines showing when a participant is active (processing a request).
Actors: External entities (e.g., User) initiating interactions, often shown with a stick figure.
Combined Fragments: Boxes for control structures, such as:
- alt (alternative) for if-else conditions.
- opt for optional flows.
- loop for repetitions.
Interaction Uses (ref): Reusing common sub-interactions.
Return Messages: Dashed arrows showing responses or results.

These elements allow modelers to represent complex flows, including success paths and exceptions, in a clear, chronological view.

Case Study: E-Commerce Order Submission Process

Consider a realistic e-commerce scenario where a user places an order via a shopping cart. The process involves validation of address, stock availability, and payment. The system must handle three main paths:

Success: Valid order → stock reserved → payment processed → order confirmed and delivery scheduled.
Invalid Address: Early rejection with user prompt.
Payment Declined: Stock checked but payment fails → error message to user.

This flow includes conditional branching (alt fragments) and error handling, making it a perfect candidate for a sequence diagram.

Participants

User (Actor)
Shopping Cart (Interface component)
Order Service (Core business logic)
Inventory System (External/back-end check)
Payment Gateway (External service)

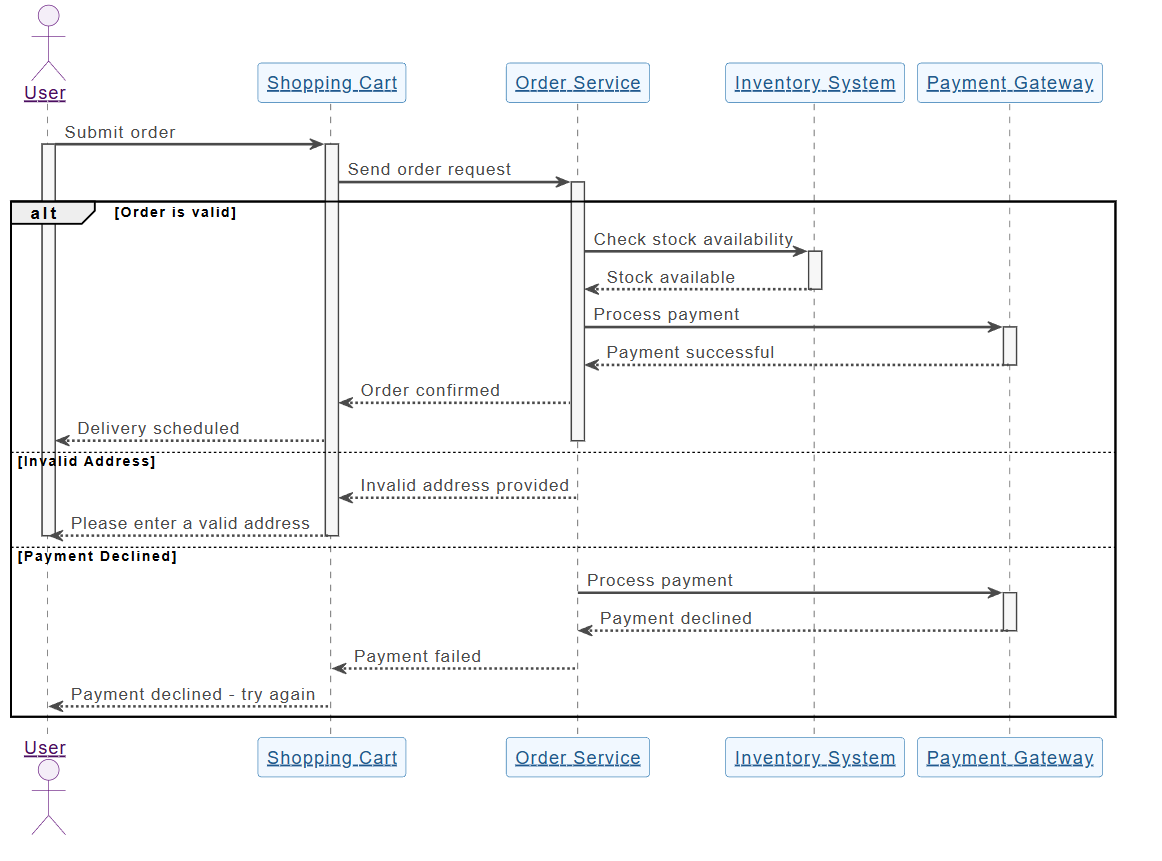

Interpretation of the Diagram

The provided PlantUML-based diagram (generated conceptually from the described flow) shows:

The process starts with the User submitting an order via the Shopping Cart.
The Shopping Cart forwards the request to the Order Service.
An alt fragment branches based on validations:
- [Order is valid] → Order Service checks stock with Inventory System → If available, proceeds to payment → Payment Gateway processes → Success returns confirmation → Order confirmed → Delivery scheduled → User notified.
- [Invalid Address] → Early rejection → Message to user: “Please enter a valid address”.
- [Payment Declined] → Payment attempted but fails → Error: “Payment declined – try again”.

The diagram uses combined fragments (alt) to group conditional paths cleanly. Activation bars show participant processing periods, and dotted return messages indicate responses. This structure keeps the diagram readable while covering happy-path and error scenarios.

Such a diagram helps developers understand message sequencing, identify potential bottlenecks (e.g., external calls to Payment Gateway), and ensure error paths are handled gracefully.

Using Visual Paradigm’s AI Chatbot to Create the Sequence Diagram

Visual Paradigm, a leading UML modeling tool, features an AI Chatbot (accessible via their online platform or desktop app) that revolutionizes diagram creation. Instead of manually dragging lifelines and arrows, users describe the scenario in natural language, and the AI generates a professional, editable UML diagram instantly.

Step-by-Step Process

Access the AI Chatbot (e.g., at chat.visual-paradigm.com or via Tools > AI Chatbot in Visual Paradigm).
Select or specify “UML Sequence Diagram” as the type.
Provide a clear textual description, such as the one in this case study: “A user submits an order from the shopping cart. The order service validates the address and stock. If invalid address, prompt user. If valid, check inventory. If stock available, process payment via gateway. If payment succeeds, confirm order and schedule delivery. Include branches for invalid address and payment declined.”
Refine via conversation: Ask the AI to add details (e.g., “Add activation bars” or “Include return messages for failures”).
Generate: The AI produces the diagram (often in editable format, with PlantUML source if needed).
Edit & Export: Refine manually (adjust layout, labels), then export as image, PDF, or code.

In this case study, the diagram closely matches what the AI would output from the provided description — complete with alt fragments for branches, proper message directions, and clean lifelines. The tool ensures UML compliance, balanced layout, and readability.

Benefits observed:

Speed: From text to diagram in seconds.
Accuracy: AI applies correct notation for fragments and messages.
Iteration: Chat-based refinement allows quick adjustments without redrawing.

How to Use Sequence Diagrams Effectively

Sequence diagrams shine in:

Requirements analysis → Clarify use case flows with stakeholders.
Design phase → Detail interactions before coding.
Documentation → Explain system behavior to teams or for onboarding.
Debugging → Compare expected vs. actual message sequences.
Testing → Derive test cases from success/error paths.

Best practices:

Keep diagrams focused on one use case or scenario.
Use meaningful names for messages (e.g., “checkStock()” instead of vague terms).
Limit participants to 5–7 for readability.
Combine with other UML diagrams (e.g., use case diagrams for context, class diagrams for structure).

Conclusion

This e-commerce order process case study demonstrates how sequence diagrams effectively model real-world interactions with conditional logic and error handling. By leveraging Visual Paradigm’s AI Chatbot, creating such diagrams becomes accessible and efficient — shifting focus from manual drawing to high-level thinking and refinement.

Modern tools like this lower the barrier for developers, analysts, and architects, enabling faster iteration and better communication in software projects. Whether you’re designing a simple checkout or a complex distributed system, sequence diagrams — powered by AI — remain an essential tool for understanding and building reliable systems.

Articles and resources

AI Sequence Diagram Example: Video Streaming Playback Initiation: This example shows the AI Chatbot acting as a modeling partner to interpret intent and refine the logic for starting video playback in real time.
Enroll in Course Example | AI MVC System Architecture Generator: This resource demonstrates how an e-learning use case is expanded into MVC architecture to generate MVC sequence diagrams automatically.
PlantUML Sequence Diagram Builder: A tool that provides a visual PlantUML generator to define participants and messages for professional UML sequence diagrams.
Visual Paradigm – AI-Powered UML Sequence Diagrams: An article explaining how to generate sequence diagrams instantly using artificial intelligence within the modeling suite.
AI-Powered Sequence Diagram Refinement Tool: This feature explores how AI improves UML modeling by optimizing sequence diagrams with intelligent suggestions.
Comprehensive Tutorial: Using the AI Sequence Diagram Refinement Tool: A step-by-step guide on leveraging AI to enhance the accuracy, clarity, and consistency of sequence models.
Simplify Complex Workflows with AI Sequence Diagram Tool: An exploration of how the AI-enhanced tool simplifies the modeling of complex system interactions.
Beginner’s Tutorial: Create Professional Sequence Diagrams in Minutes: A hands-on guide for beginners to generate their first professional diagram using natural language prompts and the AI chatbot.
Mastering Sequence Diagrams with AI Chatbot: E-commerce Case Study: This tutorial uses a real-world e-commerce scenario to demonstrate conversational diagramming with the AI chatbot.
AI-Powered Sequence Diagram Refinement from Use Case Descriptions: This resource details how to transform use-case descriptions into precise sequence diagrams with minimal manual effort via the AI refinement tool.

Modeling a Social Media Platform Database: AI-Powered ERD Generation in Visual Paradigm

Learn how to use Visual Paradigm’s AI to instantly generate professional ER diagrams for a social media platform database from simple text prompts.

Let’s be honest: starting a database design from a blank canvas can be a daunting task. Whether you are an experienced software architect or a student learning data modeling, manually drawing entities, defining attributes, and routing relationship lines takes significant effort. This is where AI Entity Relationship Diagram (ERD) generation changes the game. By simply describing your project ideas—like a “Social Media Platform”—you can use Visual Paradigm Desktop to instantly transform natural language into a professional, standards-compliant data model.

This feature isn’t just about speeding up the process; it’s about bridging the gap between a business requirement and a technical schema. In this deep dive, we’ll look at how you can go from a simple text prompt to a fully structured database diagram containing users, posts, and comments in just seconds using this intelligent database design tool.

Quick summary: Key takeaways

Text-to-Model Efficiency: Convert plain English descriptions into complex ER diagrams instantly.
Intelligent Detection: The AI automatically identifies entities, attributes, primary keys, and relationships.
Standard Notation: Generates diagrams that follow industry-standard ER conventions (Crow’s Foot, etc.).
Fully Editable: The result is a native Visual Paradigm diagram, ready for further refinement and SQL generation.

Step 1: Defining the Scope with Natural Language

The process begins with a simple concept. You don’t need to know SQL syntax or drag-and-drop dozens of boxes manually. Instead, you access the AI Diagram Generation feature within the tool. As shown in the workflow below, you simply select “Entity Relationship Diagram” as your target output. The power lies in the prompt.

In our example, we wanted to visualize the backend of a social network. We entered the prompt: “Visualize an ERD describing the database structure of a social media platform”. This plain text is all the AI needs to understand the domain requirements, inferring that a social platform typically needs users, content, interactions, and notifications.

Step 2: Analyzing the AI-Generated Data Model

Once you hit “OK,” the AI analyzes your text to identify the core entities (tables) and their associations. It doesn’t just drop random boxes on the canvas; it applies intelligent relationship and cardinality detection to structure the data logic. Within moments, you are presented with a complete diagram that looks like it took hours to design manually.

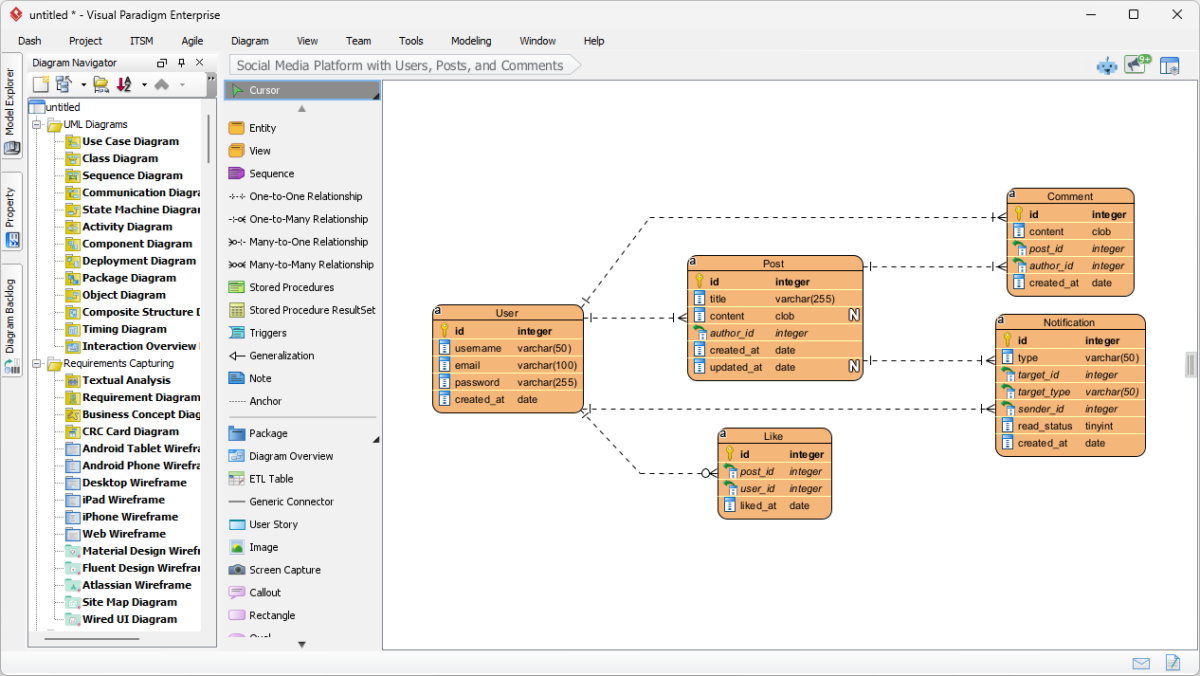

Looking at the result below, you can see the AI correctly generated a schema perfectly suited for a social media app. It created a User entity with standard attributes like username, email, and password. It logically connected the User to a Post entity (one-to-many relationship), recognizing that one user creates many posts. It even fleshed out the details by adding Comment, Like, and Notification entities, complete with foreign keys (e.g., post_id, author_id) and appropriate data types like varchar, clob, and integer.

Why This AI Feature is a Must-Have for Modelers

The beauty of using an AI-powered database modeling tool is that it handles the heavy lifting of layout and organization. As seen in the generated diagram, the entities are arranged to minimize crossing lines, making the data structure easy to read and validate.

Automatic Attribute and Key Assignment

Notice how the AI automatically assigned Primary Keys (PK) to every entity, represented by the key icon. It also made smart guesses on data types—assigning clob (Character Large Object) for the “content” of a post because it knows posts can be long, while keeping “username” as a standard varchar(50). This saves you the tedium of manually setting properties for every single column during the conceptual phase.

From Static Image to Functional Project

Unlike simple image generators, the output here is a fully editable native diagram. If you decide later that a “Post” should also have a “Category,” you can simply add that attribute using the diagram editor. This seamless transition to implementation means you can use this diagram as a foundation to generate DDL scripts for MySQL, PostgreSQL, or Oracle, effectively moving from a rough idea to a physical database schema in one workflow.

How to Create Your Own AI ERD

Ready to try this easy-to-use ERD creator? Here is the simple workflow to replicate the results shown above:

Launch Visual Paradigm: Open a new or existing project.
Open AI Tool: Navigate to Tools > AI Diagram Generation.
Select Diagram Type: Choose “Entity Relationship Diagram” from the dropdown menu.
Enter Description: Type a clear description of your system (e.g., “A library system with books, members, and loans”).
Generate: Click OK and watch your diagram appear.
Refine: Use the editor to tweak relationships or add specific constraints if needed.

Conclusion

Visual Paradigm’s AI Entity Relationship Diagram Generation transforms the way we approach data modeling. By turning a simple sentence about a “social media platform” into a comprehensive, technically accurate ERD, it removes the barriers to entry for database design. Whether you are prototyping a new application or documenting an existing system, this tool provides a robust, professional starting point instantly.

Stop drawing boxes one by one. Experience the speed of AI-assisted modeling today.

Download Visual Paradigm Desktop and try AI Diagram Generation now

A Comprehensive Guide to UML Sequence Diagrams for Use Case-Driven Development: What, Why, How, and How AI Makes It Easy

In modern software development, use case-driven design is a cornerstone of effective system modeling. It focuses on capturing user goals and system behaviors through real-world scenarios. At the heart of this approach lies the UML sequence diagram—a powerful visual tool that brings use cases to life by showing how objects interact over time.

This comprehensive guide is designed for beginners and teams who want to understand:

What sequence diagrams are and why they matter
How to create them using a use case-driven approach
Key concepts and real-world examples
How Visual Paradigm’s AI Sequence Diagram Generator accelerates the entire process—making modeling faster, smarter, and more collaborative.

🎯 What Is a Use Case-Driven Approach?

A use case-driven approach centers system design around user goals. Each use case describes a specific interaction between a user (actor) and the system to achieve a meaningful outcome.

Example:
“As a customer, I want to log in to my account so I can view my order history.”

Use cases are not just documentation—they are blueprints for functionality, and sequence diagrams are the ideal way to visualize how those use cases unfold in real time.

🧩 Why Use Sequence Diagrams in Use Case-Driven Development?

Sequence diagrams are uniquely suited to support use case modeling because they:

✅ Show the dynamic flow of interactions
✅ Highlight timing and order of messages
✅ Clarify responsibilities between objects
✅ Expose edge cases (e.g., invalid input, timeouts)
✅ Support validation of use cases during design and testing
✅ Improve communication between developers, testers, and stakeholders

🔍 Without sequence diagrams, use cases can remain abstract. With them, they become executable blueprints.

📌 Key Concepts of UML Sequence Diagrams (Beginner-Friendly)

Before diving into use cases, let’s master the core building blocks:

Element	Description	Visual
Lifelines	Vertical dashed lines representing objects or actors. Shows existence over time.	`───────────────`
Messages	Horizontal arrows between lifelines. Show communication.
• Synchronous	Solid arrow with filled head. Caller waits for response.	➔
• Asynchronous	Solid arrow with open head. No wait.	➝
• Return	Dashed arrow (response).	➝
• Self-message	Arrow looping back to same lifeline (internal processing).	↺
Activation Bars	Thin rectangles on lifelines showing when an object is active.	▯▯▯
Combined Fragments	Boxes that represent control logic:
• `alt`	Alternatives (if/else)	`alt: success / failure`
• `opt`	Optional (may or may not happen)	`opt: print receipt`
• `loop`	Repetition (e.g., while loop)	`loop: retry 3 times`
• `par`	Parallel execution	`par: check payment & stock`
Creation/Deletion	`create` message or “X” at the end of a lifeline	`create: User` or `X`

💡 Tip: Always start with a use case, then map it to a sequence diagram.

🔄 How to Create a Sequence Diagram from a Use Case (Step-by-Step)

Let’s walk through a real-world example using a use case-driven approach.

📌 Example: Use Case – “User Logs In to System”

Use Case Text:

As a user, I want to log in to my account using my username and password so I can access my profile.

Step 1: Identify Actors and Objects

Actor: User
Objects: LoginView, LoginController, Database

Step 2: Define the Main Flow

User → LoginView: Enters username/password
LoginView → LoginController: Sends credentials
LoginController → Database: Checks if user exists
Database → LoginController: Returns result
LoginController → LoginView: Sends success/failure
LoginView → User: Displays message

Step 3: Add Control Logic with Combined Fragments

Use an alt fragment to show:

Success path: “Login successful”
Failure path: “Invalid credentials”

✅ This captures the decision point in the use case.

Step 4: Add Activation Bars

Add activation bars to LoginController and Database to show processing time.

Step 5: Final Diagram

Now you have a complete, use case-aligned sequence diagram that reflects real system behavior.

🔗 See this in action: AI-Powered UML Sequence Diagrams

📌 Example 2: Use Case – “Customer Withdraws Cash from ATM”

Use Case Text:

As a customer, I want to withdraw cash from an ATM so I can access my money. If the balance is insufficient, I want to be notified.

Step 1: Identify Participants

Actor: Customer
Objects: ATM, CardReader, BankServer, CashDispenser

Step 2: Main Flow

Customer → ATM: Inserts card
ATM → CardReader: Reads card
ATM → Customer: Prompts for PIN
Customer → ATM: Enters PIN
ATM → BankServer: Validates PIN
BankServer → ATM: Confirms valid
ATM → Customer: Prompts for amount
Customer → ATM: Enters amount
ATM → BankServer: Checks balance
BankServer → ATM: Returns balance
ATM → CashDispenser: Dispenses cash
ATM → Customer: Shows receipt option

Step 3: Add Fragments

loop: For retry attempts after wrong PIN
opt: For receipt printing
alt: For “insufficient funds” vs. “success”

🔗 See how AI handles this: Simplify Complex Workflows with AI Sequence Diagram Tool

📌 Example 3: Use Case – “Customer Completes E-Commerce Checkout”

Use Case Text:

As a customer, I want to add items to my cart, proceed to checkout, and complete payment so I can receive my order.

Step 1: Participants

Customer, ShoppingCart, PaymentGateway, InventorySystem, OrderConfirmation

Step 2: Flow with Parallelism

Customer → ShoppingCart: Adds item(s) → loop for multiple items
ShoppingCart → Customer: Shows total
Customer → PaymentGateway: Initiates payment
Customer → InventorySystem: Requests stock check
PaymentGateway → Bank: Processes payment → par with inventory check
InventorySystem → PaymentGateway: Confirms availability
PaymentGateway → ShoppingCart: Confirms order
ShoppingCart → OrderConfirmation: Sends confirmation

✅ Use par fragment to show concurrent processing.

🔗 See a full tutorial: Mastering Sequence Diagrams with AI Chatbot: E-commerce Case Study

🤖 How Visual Paradigm’s AI Sequence Diagram Generator Helps Teams

Traditional modeling tools require users to manually drag lifelines, draw messages, and place fragments—time-consuming and error-prone.

Visual Paradigm’s AI-powered tools eliminate these bottlenecks, especially for teams using a use case-driven approach.

✨ 1. AI Chatbot: Generate Diagrams from Use Case Text in Seconds

Instead of drawing by hand, describe your use case in plain English:

📝 Prompt:
“Generate a sequence diagram for a user logging in with username/password, including error handling and retry after 3 failed attempts.”

The AI:

Identifies actors and objects
Maps the use case flow to lifelines and messages
Applies alt, loop, and opt fragments automatically
Outputs a clean, professional diagram in under 10 seconds

🔗 Try it: AI-Powered UML Sequence Diagrams

✨ 2. AI Sequence Diagram Refinement Tool: Turn Drafts into Professional Models

Even if you start with a rough sketch, the AI Sequence Diagram Refinement Tool enhances it:

Adds activation bars where needed
Suggests correct fragment usage (alt, loop, par)
Enforces design patterns (e.g., MVC: View → Controller → Model)
Detects missing error paths and edge cases
Improves readability and consistency

🔗 Learn how: Comprehensive Tutorial: Using the AI Sequence Diagram Refinement Tool

✨ 3. From Use Case Descriptions to Diagrams: Zero Manual Translation

No more translating use case text into diagrams by hand.

The AI automatically converts textual use cases into accurate sequence diagrams, reducing:

Manual effort
Misinterpretation
Inconsistencies

🔗 See it in action: AI-Powered Sequence Diagram Refinement from Use Case Descriptions

✨ 4. Iterative Refinement with Conversational AI

Want to improve your diagram? Just chat with the AI:

“Add a ‘Forgot Password’ option after 3 failed login attempts.”
“Change ‘User’ to ‘Customer’.”
“Show the error message in red.”

Each prompt updates the diagram in real time—no redrawing, no frustration.

🔗 Explore the interface: AI Sequence Diagram Refinement Tool Interface

✨ 5. Team Collaboration Made Easy

Non-technical stakeholders (product managers, clients) can contribute via natural language.
Developers can refine diagrams quickly during sprints.
Testers can use diagrams to write test cases.
Designers can validate flows before coding.

✅ Ideal for agile teams using user stories and use cases.

🚀 Why Teams Love Visual Paradigm’s AI for Use Case Modeling

Benefit	Impact
⏱️ Speed	Generate diagrams in seconds instead of hours
🧠 Low Skill Barrier	No UML expertise needed to start
🔄 Iterative Design	Refine diagrams in real time via chat
🛠️ Error Reduction	AI catches missing flows, invalid fragments
📦 Export & Share	Export to PNG, SVG, PDF, or embed in Confluence/Notion
🤝 Collaboration	Everyone can contribute, even non-technical members

📚 Top Resources for Beginners & Teams

Resource	URL
AI-Powered UML Sequence Diagrams	https://blog.visual-paradigm.com/generate-uml-sequence-diagrams-instantly-with-ai/
AI-Powered Sequence Diagram Refinement Tool	https://www.visual-paradigm.com/features/ai-sequence-diagram-refinement-tool/
Comprehensive Tutorial: Using the AI Sequence Diagram Refinement Tool	https://www.archimetric.com/comprehensive-tutorial-using-the-ai-sequence-diagram-refinement-tool/
AI-Powered Sequence Diagram Refinement from Use Case Descriptions	https://www.cybermedian.com/refining-sequence-diagrams-from-use-case-descriptions-using-visual-paradigms-ai-sequence-diagram-refinement-tool/
Simplify Complex Workflows with AI Sequence Diagram Tool	https://www.cybermedian.com/🚀-simplify-complex-workflows-with-visual-paradigm-ai-sequence-diagram-tool/
AI Sequence Diagram Refinement Tool Interface	https://ai.visual-paradigm.com/tool/sequence-diagram-refinement-tool/
Beginner’s Tutorial: Create Professional Sequence Diagrams in Minutes	https://www.anifuzion.com/beginners-tutorial-create-your-first-professional-sequence-diagram-in-minutes-using-visual-paradigm-ai-chatbot/
From Simple to Sophisticated: AI-Powered Modeling Evolution	https://guides.visual-paradigm.com/from-simple-to-sophisticated-what-is-the-ai-powered-sequence-diagram-refinement-tool/
Mastering Sequence Diagrams with AI Chatbot: E-commerce Case Study	https://www.archimetric.com/mastering-sequence-diagrams-with-visual-paradigm-ai-chatbot-a-beginners-tutorial-with-a-real-world-e-commerce-case-study/
AI Sequence Diagram Example: Video Streaming Playback Initiation	https://chat.visual-paradigm.com/ai-diagram-example/ai-sequence-diagram-video-streaming-playback/

✅ Final Tips for Teams Using Use Case-Driven Design

Start with a clear use case – define the user goal first.
Use sequence diagrams to validate the flow before coding.
Involve stakeholders early – use diagrams for feedback.
Leverage AI to reduce manual work – let the tool do the heavy lifting.
Keep diagrams updated – revise as requirements evolve.

🎁 Get Started for Free

You don’t need a paid license to experience the power of AI-driven modeling.

Try the free Community Edition of Visual Paradigm – includes AI Chatbot and sequence diagram tools.
Use the AI Sequence Diagram Refinement Tool online.
Join a growing community of teams using AI to build better systems faster.

📌 Conclusion

A use case-driven approach is the foundation of user-centered software design. UML sequence diagrams bring those use cases to life—showing who does what, when, and how.

With Visual Paradigm’s AI Sequence Diagram Generator, teams can:

Generate diagrams from plain language
Refine them in real time
Ensure consistency and accuracy
Collaborate across roles

🚀 From use case to diagram in seconds—no UML expertise needed.

👉 Start today with the free Community Edition and transform your team’s modeling workflow.

🌟 The future of system design is not just visual—it’s intelligent.
Let AI be your modeling partner.

From Problem to Report: How AI Guides Your Use Case Journey

Discover how AI guides your use case journey from problem to report with Visual Paradigm’s intelligent development assistant.

Imagine you’re a project manager tasked with launching a new online course platform. The first challenge is to articulate the problem clearly and then translate it into a functional system. This is where the Use Case Driven Development Assistant, an AI-powered tool from Visual Paradigm, steps in. It doesn’t just help you write documents; it guides you through a complete, structured workflow to transform a vague idea into a detailed, actionable project plan. The process is so intuitive, it feels like having a seasoned business analyst and a technical architect working side-by-side with you. This deep dive explores the core features of this powerful tool, using a real-world example of an online course platform to show how it streamlines the entire use case lifecycle.

Quick Summary: Key Takeaways from the Use Case Driven Development Assistant

Start with a clear problem statement to define the project’s core objective.

Use AI to automatically generate a list of candidate use cases and actors.

Visualize system functionality with AI-generated Use Case and Activity Diagrams.

Prioritize features using a structured MoSCoW method to focus on high-value work.

Generate detailed use case descriptions and executable Gherkin test scenarios.

Create comprehensive reports to communicate project scope and plans.

Track progress and maintain a single source of truth with a central dashboard.

Step 1: Defining the Problem with AI

Every successful project begins with a clear understanding of the problem it aims to solve. The journey with the Use Case Driven Development Assistant starts in the “Problem Statement” tab. Here, you input a project name and a short description. The AI then leverages this information to generate a comprehensive problem statement. As seen in Image 1, the tool has taken the project name “Online Course Platform” and the short description “A marketplace for instructors to create and sell courses, and for students to enroll and learn” to produce a detailed narrative. This narrative identifies the core pain points: students struggle to find relevant courses, while instructors face challenges in reaching a broad audience and monetizing their expertise. This AI-generated problem statement serves as the project’s foundation, ensuring everyone on the team shares a unified understanding from the very beginning.

Step 2: Identifying Use Cases with AI Assistance

Once the problem is defined, the next logical step is to identify the key functionalities the system must provide. The assistant’s “Candidate Use Cases” tab, shown in Image 2, automates this process. After analyzing the problem statement, the AI suggests a list of use cases, each associated with an actor (like Instructor, Student, or Admin). For our online course platform, the AI proposes use cases such as “Create a New Course,” “Upload Course Content,” “Browse and Search Courses,” and “Enroll in a Course.” This list provides a solid starting point, saving significant time and effort that would otherwise be spent on brainstorming sessions. You can then refine these suggestions, add new ones, or delete irrelevant ones to create a comprehensive list of system functionalities.

Step 3: Visualizing the System with a Use Case Diagram

After identifying the use cases, it’s crucial to visualize how they interact with the system’s actors. The “Use Case Diagram” tab, illustrated in Image 3, takes the list of use cases and actors and automatically generates a clear, graphical representation. This diagram shows the relationships between the actors (Instructor, Student, Admin) and the system’s functions (Create a New Course, etc.). The AI-powered generation ensures that the diagram is accurate and professionally formatted. This visual aid is invaluable for communication, allowing stakeholders, developers, and designers to quickly grasp the system’s scope and functionality without wading through text-heavy documents.

Step 4: Prioritizing Features for Maximum Impact

Not all use cases are created equal. A project’s success often hinges on focusing on the most critical features first. The “Prioritize Use Cases” tab, as shown in Image 4, provides a powerful framework for this. It allows you to assign a user value and business value (on a scale of 0-10) to each use case and then apply the MoSCoW prioritization method (Must Have, Should Have, Could Have, Won’t Have). In our example, the AI has helped identify that “Create a New Course” and “Upload Course Content” are “Must Have” features, as they are essential for the platform’s core function. This structured prioritization ensures that the development team focuses on delivering the highest value to users and the business, avoiding wasted effort on low-priority features.

Step 5: Detailing Use Cases and Generating Activity Diagrams

With the high-level view established, the next step is to dive into the details of each use case. The “Use Case Details” tab, shown in Image 5, allows you to create a comprehensive template for a selected use case. The AI can generate a detailed description, including pre-conditions, main flow, and alternative flows. For the “Create a New Course” use case, the AI provides a structured template that outlines the necessary steps. To further enhance understanding, the assistant can generate an “Activity Diagram” for the same use case, as seen in Image 6. This diagram visually maps out the step-by-step workflow, showing the sequence of actions from the instructor logging in to the course being saved. This level of detail is essential for both developers and QA teams.

Step 6: Generating Test Scenarios and Sequence Diagrams

For a development team, the next critical step is to create testable scenarios. The “Scenarios” tab, shown in Image 7, allows you to generate executable Gherkin scenarios directly from your use case descriptions. These scenarios, written in a plain-language format (Given-When-Then), are perfect for automated testing. The AI can generate a main scenario and alternative scenarios, such as one for an invalid title. To further clarify the system’s internal workings, the assistant can generate a “Sequence Diagram,” as seen in Image 8. This diagram shows the interaction between the instructor, the web dashboard, the backend API, the database, and the notification service, providing a clear picture of the system’s architecture and data flow.

Step 7: Creating Comprehensive Project Reports

Throughout the development process, it’s essential to communicate the project’s status and plans to various stakeholders. The “Generate Report” tab, as shown in Image 9, makes this easy. You can generate a variety of reports, such as a “Project Overview,” “Implementation Plan,” “QA Test Plan,” or a “Developer Task List.” These reports are generated with AI assistance, ensuring they are consistent and comprehensive. For example, the “Project Overview” report summarizes the entire project, including the executive summary, key features, and the rationale behind the prioritization. This single source of truth ensures everyone is aligned and informed.

Step 8: Tracking Progress with the Dashboard

Finally, the journey culminates in the “Dashboard,” as seen in Image 10. This central hub provides a high-level overview of the project’s status. It shows the project completion percentage, the total number of use cases, and the number of “Must Have” items. The project checklist allows you to track your progress, with each completed step marked as “Done.” This real-time visibility into the project’s health is invaluable for project managers and team leads, enabling them to identify bottlenecks and ensure the project stays on track.

The Use Case Driven Development Assistant is more than just a tool; it’s a comprehensive workflow that brings clarity and efficiency to the software development process. By leveraging AI at every stage—from defining the problem to generating reports—it helps teams move from requirements to implementation faster and with greater accuracy. The result is a well-structured, well-documented project that is aligned with business goals and user needs. If you’re looking to streamline your use case development process, this AI-powered tool is a powerful solution.

Ready to see how the Use Case Driven Development Assistant can transform your next project? Try it now.

Beyond the Sketch: Why Casual AI LLMs Fail at Visual Modeling and How Visual Paradigm Bridges the Gap

In the modern software engineering landscape, the transition from abstract ideas to concrete system designs often feels like solving a “maze without a map”. While general Large Language Models (LLMs) have revolutionized initial content creation, they fall significantly short when applied to professional visual modeling. This article explores the missing elements of casual AI diagram generation and how the Visual Paradigm (VP) AI ecosystem transforms these challenges into a high-speed engine for architectural success.

1. The “Sketch Artist” Problem: What is Missing in Casual AI LLMs

The fundamental limitation of general LLMs in diagramming stems from the difference between textual generation and standardized visual modeling. The sources characterize general LLMs as “sketch artists” who lack the “building codes” and “CAD systems” necessary for professional engineering.

Lack of Rendering Engines: General LLMs are primarily designed to process and produce text. While they can generate “diagramming code” (such as Mermaid or PlantUML), they lack built-in rendering engines to convert that code into high-quality, editable vector graphics like SVG.
Semantic and Standard Violations: Generic AI models often produce “pretty sketches” that violate the technical rules of formal modeling. They frequently misinterpret complex technical jargon such as “aggregation,” “composition,” or “polymorphism,” resulting in decorative drawings rather than functional engineering artifacts.
Absence of State Management: Casual LLMs lack a persistent visual structure. If a user asks a text-based AI to change a single detail, the model often has to regenerate the entire diagram, leading to broken connectors, misaligned layouts, or the total loss of previous details.

2. Problems Encountered in Casual AI Diagramming

Relying on casual AI generation introduces several risks that can compromise project integrity:

The “Design-Implementation Gap”: Without a rigorous visual blueprint, logic remains “scattered” and “vague,” often leading to code that is a “mess” and meetings that end without shared understanding.
Syntax Expertise Barriers: If an AI generates raw code, the user must possess deep technical expertise in that specific syntax (e.g., PlantUML) to make manual modifications, defeating the purpose of an “easy” AI tool.
Isolation from Workflow: Text snippets from general LLMs are isolated from the actual engineering process, requiring manual copy-pasting and offering no version control or integration with other model types.
The Failure of “One-Shot” Prompts: A single prompt is rarely sufficient to fit 100% of a user’s requirements for a detailed system. Initial ideas are often “scattered,” and users frequently realize they missed critical details—like load balancers or error-handling states—only after seeing a first draft.

3. How Visual Paradigm AI Achieves Professional Integrity

Visual Paradigm AI addresses these legacy issues by transforming modeling from a “labor-intensive drawing chore” into an intuitive, conversational, and automated workflow.

A. “Diagram Touch-Up” and Persistent Structure

Unlike generic tools, VP AI maintains the diagram as a persistent object. Through proprietary “Diagram Touch-Up” technology, users can issue conversational commands like “add a two-factor authentication step” or “rename this actor,” and the AI updates the visual structure immediately while maintaining layout integrity.

B. Standardized Intelligence

Visual Paradigm AI is uniquely trained on established modeling standards, including UML 2.5, ArchiMate 3, and C4. It understands the semantic rules and structure behind words, ensuring that relationships and naming conventions are technically valid blueprints ready for construction.

C. Specialized Step-Based Analysis

To bridge the gap between requirements and design, the ecosystem provides systematic apps:

AI-Powered Textual Analysis: Automatically extracts candidate domain classes, attributes, and relationships from unstructured problem descriptions before a single line is drawn.
10-Step AI Wizard: Guides users through a logical sequence—from defining purpose to identifying operations—ensuring “human-in-the-loop” validation to prevent the errors common in “one-shot” AI generation.

D. Architectural Critique as a Consultant

Beyond simple generation, the AI acts as a systematic design assistant. It can analyze existing designs to identify single points of failure, logic gaps, or suggest industry-standard patterns like MVC (Model-View-Controller) to improve system quality.

E. Seamless Ecosystem Integration

AI-generated models are functional artifacts, not isolated images. They can be imported into the Visual Paradigm Desktop or Online suites for advanced editing, versioning, and code engineering (including database generation and Hibernate ORM integration), ensuring the visual design directly drives the software implementation.

Conclusion: From Hand-Chiseling to 3D Printing

Traditional modeling is like hand-chiseling a marble statue, where every stroke is a high-risk manual effort. In contrast, Visual Paradigm AI is like using a high-end 3D printer: you provide the specifications in plain English, and the system precisely builds a technically sound structure, allowing you to focus on strategic design decisions. By unifying strategy, business modeling, and technical design into a single AI-enhanced platform, Visual Paradigm eliminates the “blank canvas” problem and ensures all stakeholders work from the same conceptual baseline.

AI-Powered Use Case to Activity Diagram Tutorial with Visual Paradigm: A step-by-step guide on automatically converting use case descriptions into detailed activity diagrams using Visual Paradigm’s AI.
The Future of Modeling: How AI is Transforming UML Diagram Generation: An analysis of how artificial intelligence is streamlining and enhancing UML diagram creation in modern software development.
Introducing Visual Paradigm’s AI-Powered Textual Analysis Tool: Visual Paradigm’s latest release introduces AI-driven textual analysis for smarter, faster diagramming.
AI-Powered Use Case Diagram Example for Smart Home System: A community-shared AI-generated use case diagram showing user interactions with a smart home system.
AI-Powered Use Case Diagram Refinement Tool by Visual Paradigm: An AI tool that improves use case diagrams by suggesting enhancements, identifying missing actors, and optimizing structure.
AI Use Case Description Generator by Visual Paradigm: An AI-powered tool that generates detailed use case descriptions from user input to accelerate documentation.
Master AI-Driven Use Case Diagrams: A Short Tutorial: A concise tutorial on using AI to create, refine, and automate use case diagram development.
AI-Powered Sequence Diagram Refinement Tool | Visual Paradigm: An AI tool that enhances sequence diagrams with intelligent suggestions for improved accuracy and clarity.
Comprehensive Tutorial: Using the AI Sequence Diagram Refinement Tool: A step-by-step guide to using the AI Sequence Diagram Refinement Tool for better diagram quality and consistency.
Simplify Complex Workflows with Visual Paradigm AI Sequence Diagram Tool: Visual Paradigm’s AI-enhanced tool simplifies modeling complex system interactions and workflows.
AI Sequence Diagram Refinement Tool | Visual Paradigm: AI-powered refinement of sequence diagrams for improved readability, correctness, and consistency.
Beginner’s Tutorial: Create Your First Professional Sequence Diagram in Minutes: A beginner-friendly guide to creating professional sequence diagrams quickly using Visual Paradigm’s AI chatbot.
From Simple to Sophisticated: AI-Powered Sequence Diagram Refinement Tool: Visual Paradigm’s AI tool transforms basic sequence diagrams into refined, accurate models with minimal input.
Refining Sequence Diagrams with AI: A Smarter Way to Design Systems: AI enhances sequence diagram design by intelligently refining models for improved clarity and system accuracy.

Beyond the Sketch: Why Casual AI LLMs Fail at Visual Modeling and How Visual Paradigm Bridges the Gap

In today’s fast-paced software engineering and enterprise architecture world, turning abstract requirements into precise, actionable designs remains challenging. General-purpose Large Language Models (LLMs) excel at brainstorming and text generation but struggle with professional visual modeling. They produce “sketches” rather than engineered blueprints. Visual Paradigm’s AI-powered ecosystem changes this by delivering standards-aware, persistent, and iterative diagramming that accelerates architectural work from idea to implementation.

1. The “Sketch Artist” Problem: Limitations of Casual AI LLMs

Casual AI tools (e.g., ChatGPT, Claude) treat diagramming as an extension of text generation. They output code in formats like Mermaid or PlantUML, but lack depth for professional use.

Key limitations include:

No Native Rendering or Editing Engine LLMs generate text-based syntax (e.g., Mermaid flowchart code), but offer no built-in viewer or editor for high-quality vector graphics (SVG). Users paste code into external renderers, losing interactivity. Changes require full regeneration.
Semantic Inaccuracies and Standard Violations Generic models misinterpret UML/ArchiMate concepts. For example, they confuse aggregation (shared ownership) with composition (exclusive ownership), or draw invalid inheritance arrows. Results look attractive but fail as engineering artifacts—e.g., a class diagram might show bidirectional associations where unidirectional is correct.
Lack of Persistent State and Incremental Updates Each prompt regenerates the diagram from scratch. Asking “add error handling to this sequence diagram” often breaks layouts, loses connectors, or forgets prior elements. No memory of visual structure exists.

Example: Prompting ChatGPT for a “UML class diagram of an online banking system with accounts, transactions, and two-factor authentication” yields Mermaid code. Adding “include fraud detection module” regenerates everything—potentially rearranging classes, dropping associations, or introducing syntax errors.

These issues create “pretty pictures” instead of maintainable models.

2. Real-World Problems When Relying on Casual AI Diagramming

Using general LLMs introduces risks that undermine project quality:

The Design-Implementation Gap Vague or incorrect visuals lead to misaligned code. Teams waste time in meetings clarifying intent because diagrams lack precision.
Syntax Dependency and Expertise Barrier Editing Mermaid/PlantUML requires learning specialized syntax—ironic for “AI-assisted” tools. Non-experts struggle with manual fixes.
Workflow Isolation Diagrams are static images or code snippets, disconnected from version control, collaboration, or downstream tasks (e.g., code generation, database schemas).
“One-Shot” Prompt Failure Complex systems need iteration. Users spot omissions (e.g., missing load balancers, caching layers, or exception flows) only after the first output, but regeneration discards progress.

Example: In system design interviews or early architecture sessions, developers use ChatGPT to generate C4 model diagrams via Mermaid. Initial outputs miss key boundaries or relationships. Iterative prompting yields inconsistent versions, frustrating teams and delaying decisions.

3. How Visual Paradigm AI Delivers Professional-Grade Modeling

Visual Paradigm transforms diagramming into a conversational, standards-driven, and integrated process. Its AI understands UML 2.5, ArchiMate 3, C4, BPMN, SysML, and more, producing compliant, editable models.

A. Persistent Structure with “Diagram Touch-Up” Technology

VP maintains diagrams as living objects. Users issue natural language commands to update specific parts without regeneration.

Conversational edits: “Add two-factor authentication step after login” or “Rename Customer actor to User” instantly adjust layout, connectors, and semantics while preserving integrity.

This eliminates broken links and layout chaos common in casual tools.

B. Standards-Compliant Intelligence

Trained on formal notations, VP AI enforces rules:

Correct multiplicity in associations
Proper use of stereotypes
Valid ArchiMate viewpoints (e.g., Capability Map, Technology Usage)

Diagrams are technically sound “blueprints” rather than approximations.

C. Systematic Step-Based Analysis and Guidance

VP provides structured apps to bridge requirements to design:

AI-Powered Textual Analysis — Analyzes unstructured text (e.g., requirements docs, user stories) to extract candidate classes, attributes, operations, and relationships. It generates initial class diagrams automatically.

Example: Input a description: “An e-commerce platform allows customers to browse products, add to cart, checkout with payment gateway, and track orders.” AI identifies classes (Customer, Product, Cart, Order, PaymentGateway), attributes (e.g., price, quantity), and associations (Customer places Order).
10-Step AI Wizard (for UML class diagrams and similar) — Guides users logically: define purpose → scope → classes → attributes → relationships → operations → review → generate. Human-in-the-loop validation prevents one-shot errors.

D. AI as Architectural Consultant

Beyond generation, VP AI critiques designs:

Detects single points of failure
Identifies logic gaps
Suggests patterns (e.g., MVC, Repository, Observer)

It acts as an expert reviewer.

E. Seamless Integration into Professional Workflows

Models are not isolated images:

Fully editable in Visual Paradigm Desktop/Online
Support versioning and collaboration
Enable code engineering (e.g., generate Java/Hibernate ORM, database schemas)
Export/import across tools

This closes the loop from design to code.

Example: Generate an ArchiMate viewpoint for “Technology Layer” via prompt: “Create ArchiMate diagram for cloud-based microservices architecture with AWS components.” AI produces a compliant diagram. Use “Diagram Touch-Up” to add security controls. Export to desktop for team review and code gen.

Conclusion: From Manual Chiseling to AI-Powered 3D Printing

Traditional diagramming feels like chiseling marble—slow, error-prone, and irreversible. Casual AI LLMs improve speed but remain “sketch artists” producing inconsistent, non-persistent visuals.

Visual Paradigm AI is like a high-precision 3D printer: input plain English specifications, receive standards-compliant, editable structures, iterate conversationally, and drive implementation directly. By unifying business, enterprise, and technical modeling in one AI-enhanced platform, it eliminates the blank-canvas paralysis and ensures stakeholders share a precise, actionable baseline.

For software architects, enterprise teams, and developers tired of regenerating broken Mermaid snippets, Visual Paradigm represents the next evolution: intelligent modeling that respects standards, preserves intent, and accelerates delivery.

Discover the Power of Visual Paradigm ’s AI -Powered… – Visualize AI: Visual Paradigm’s AI-powered Image Translator leads the market with advanced capabilities beyond standard tools.
AI Chatbot for Diagramming: How It Works with Visual Paradigm: The AI chatbot converts natural language into diagrams, eliminating the need to learn modeling syntax or standards.
AI Brainstorming Features – Visual Paradigm: Visual Paradigm’s AI-powered brainstorming tools deliver intelligent idea generation and collaborative workflows to enhance creativity and productivity.
AI Brainstorming Tool – Visual Paradigm AI: Generate and organize ideas quickly with AI-driven insights and smart templates in Visual Paradigm’s AI Brainstorming tool.
AI-Powered Use Case Diagram Refinement Tool – Smart Diagram Enhancement: AI-powered refinement enhances use case diagrams for improved clarity, consistency, and completeness.
Convert Use Case to Activity Diagram – AI-Powered Transformation: Automatically convert use case diagrams into detailed activity diagrams to visualize system workflows.
AI-Assisted UML Class Diagram Generator – Visual Paradigm: Generate UML class diagrams with AI-powered suggestions, validation, PlantUML export, and design analysis.
Mastering UML Activity Diagrams with AI | Visual Paradigm Blog: Explores how AI features in Visual Paradigm enhance the creation and optimization of UML activity diagrams for developers and analysts.
Revolutionize Your Slides: Meet Visual Paradigm’s AI Markdown Presentation Maker!: Turn raw ideas into polished, animated presentations using AI-powered Markdown input.
Lumina AI: Generate AI-Powered Video Slideshows Instantly: Generate dynamic video presentations from text using AI, ideal for storytelling and rapid content creation.
Lumina AI Slideshow Maker: Create Stunning Presentations with AI: Create professional-quality slides from simple text using artificial intelligence to save time and spark creativity.
Illumy AI Slideshow Maker: Instant AI-Powered Presentation Creation: Create professional, visually rich slides in seconds using AI, tailored for marketers, educators, and business professionals.
AI Animated Presentation Studio: Create Dynamic, Animated Slides with Ease: Design engaging, animated presentations with AI-powered storytelling, motion, and visual effects.
How to Structure Your Jira Backlog Instantly with Agilien AI: Automate Jira backlog structuring by analyzing user stories and generating organized sprints and epics using Agilien AI.
Agilien AI-Powered Jira Backlog Planner – Visual Paradigm: Automate and improve Jira backlog planning with Agilien AI, which intelligently structures user stories and epics for efficient sprints.
How to Create Stunning Animated Presentations with Visual Paradigm’s AI Markdown Presentation Maker: Create dynamic, visually engaging presentations using AI-powered Markdown tools in Visual Paradigm.
Introducing AI Animated Presentation Studio – A New Era in Visual Storytelling: Generate AI-enhanced, animated presentations effortlessly with Visual Paradigm’s AI Animated Presentation Studio.
Visual Paradigm Online – AI-Powered Presentation Maker for Modern Creators: Visual Paradigm Online’s AI-driven presentation maker offers a powerful tool for professionals and educators to create dynamic, professional presentations with ease.
Complete Tutorial: AI-Powered Business Process Mapping with Visual Paradigm: Learn to use AI-powered features in Visual Paradigm for faster, more accurate business process mapping.
Visual Paradigm AI Diagram Generation Guide: A step-by-step guide to using Visual Paradigm’s AI-powered tools for fast and accurate diagram generation.
AI Diagram Generation Features in Visual Paradigm: Advanced AI capabilities in Visual Paradigm enable diagram creation from natural language descriptions.
Visual Paradigm AI Diagram Generator Release Notes: Latest updates and enhancements to Visual Paradigm’s AI Diagram Generator feature.
Visual Paradigm’s AI Diagram Generator Expands Instant Creation Capabilities: Visual Paradigm’s AI diagram generator now supports instant creation of DFDs, ERDs, mind maps, and more.
New Diagram Types Added to AI Diagram Generator: DFD & ERD: Expanded AI diagram generation support for Data Flow Diagrams (DFD) and Entity Relationship Diagrams (ERD).
AI Diagram Generator Now Supports Package Diagrams in Visual Paradigm: New release enables AI-generated package diagrams for improved software architecture visualization.
AI Diagram Generator Adds Radar Chart Support: Visual Paradigm introduces AI-powered radar chart generation for visualizing complex performance and capability metrics.
Comprehensive Tutorial: Generating ArchiMate Diagrams with AI: Learn to generate ArchiMate diagrams and viewpoints efficiently using Visual Paradigm’s AI diagram generator.
From Problem Description to Class Diagram: AI-Powered Textual Analysis: Convert natural language problem descriptions into accurate class diagrams using Visual Paradigm’s AI-powered textual analysis.
How to Translate Text in Images for UML, BPMN, and Flowcharts: Use AI tools to extract and translate text in technical diagrams for global collaboration and localization.
AI Textual Analysis Tool by Visual Paradigm: Turn natural language input into structured diagrams for software design, documentation, and system modeling.
Introduction to Choosing Between Generative AI and Visual Paradigm AI for Diagramming: This article helps users understand the key differences between general generative AI and Visual Paradigm AI, guiding them in selecting the right tool for efficient and accurate diagram creation.
Comprehensive Guide to Visual Paradigm AI Table Generator: From Natural Language to Executable Code: Transform natural language into functional database tables and executable code using Visual Paradigm AI’s table generation engine.
Case Study: Enhancing System Modeling Efficiency with Visual Paradigm’s AI-Powered Chatbot: Improve system modeling efficiency and accuracy with Visual Paradigm’s AI chatbot for conversational diagram creation.
How to Create a UML Deployment Diagram for Cloud Apps with AI: A step-by-step guide to using AI-powered tools to efficiently generate UML deployment diagrams for cloud applications.
Information Discovery with Deep Learning & NLP on Azure – Template: Build intelligent systems that extract insights from unstructured data using deep learning and NLP with this advanced Azure template.
Mastering AI-Driven Use Case Diagrams with Visual Paradigm: A tutorial on using AI features in Visual Paradigm to create intelligent, dynamic use case diagrams for modern software systems.
AI-Powered Radar Chart Creation in Visual Paradigm Desktop: Learn to generate intelligent, data-driven radar charts using AI features in Visual Paradigm Desktop for enhanced analytical visualization.
Comprehensive Tutorial: Using Visual Paradigm’s AI Development Plan Generator: Use Visual Paradigm’s AI-powered tool to create detailed and strategic development plans for software and AI projects.
Ultimate Guide to C4 Model Visualization Using Visual Paradigm’s AI Tools: Leverage AI-powered tools in Visual Paradigm to automate and enhance C4 model visualization for smarter architecture design.
Comprehensive Guide to Translating Text in Technical Diagrams Using AI: Shows how Visual Paradigm’s AI Image Translator automates accurate translation of text in UML, BPMN, and flowcharts.
Comprehensive Review of Visual Paradigm’s AI Diagram Generation Features: Reviews Visual Paradigm AI’s ability to generate diagrams from natural language with high accuracy and speed.
AI-Powered User Story 3Cs Editor: Enhance Clarity and Completeness: AI-powered tool that assists Agile teams in writing effective user stories using the 3Cs framework: Card, Conversation, and Confirmation.
AI-Powered Gantt Chart Builder – Instant Project Planning Tool: An AI-powered tool that generates Gantt charts from simple task inputs, enabling intelligent scheduling and visual planning.
Visualizing Complex Ideas with AI-Powered Tree Diagrams: AI-driven tree diagram tools help users break down complex ideas into clear, visual structures for improved understanding.
AI-Powered Fishbone Diagram Generator – Uncover Root Causes in Seconds: AI-powered tool automates fishbone diagram creation to speed up root cause analysis and decision-making.
AI-Powered Diagram Generation: New Features for UML Timing Diagrams: Visual Paradigm’s AI-powered feature enables automatic generation of UML timing diagrams for faster, more accurate modeling.
Introducing AI-Powered ArchiMate Viewpoints Generator in Visual Paradigm: AI-driven generation of ArchiMate viewpoints automates enterprise architecture modeling for improved accuracy and efficiency.
Visual Paradigm AI Chatbot: The World’s First Purpose-Built AI Assistant for Visual Modeling: Visual Paradigm’s AI chatbot enables natural language interaction to guide users through visual modeling tasks.
How AI Enhances Class Diagram Creation in Visual Paradigm: AI enhances class diagram creation by automating design and improving accuracy with minimal user input.
AI-Powered Sequence Diagram Refinement in Visual Paradigm: Transform use-case descriptions into precise, professional sequence diagrams using AI-powered refinement.
Streamlining Class Diagrams with Visual Paradigm’s AI: AI tools in Visual Paradigm reduce the time and complexity of creating accurate class diagrams for software projects.
AI-Powered MVC System Architecture Generator by Visual Paradigm: Automatically generate scalable and clean MVC system architectures using AI-driven modeling in Visual Paradigm.
Comprehensive Tutorial: AI-Powered ArchiMate Diagram Generation in Visual Paradigm Desktop: Create professional ArchiMate diagrams efficiently using AI-powered generation in Visual Paradigm Desktop.
Introducing Visual Paradigm AI Chatbot: Intelligent Design Assistance: Visual Paradigm’s AI chatbot enhances design workflows with real-time suggestions and automation of repetitive tasks.
Leveraging Visual Paradigm’s AI C4 Studio for Streamlined Architecture Documentation: Use AI-enhanced C4 Studio to create clean, scalable, and maintainable software architecture documentation.
What Is the Business Model Canvas? Why Use Visual Paradigms & AI Tools: This guide explains the Business Model Canvas and how visual paradigms and AI tools enhance strategic planning and innovation.
AI-Powered Textual Analysis Tutorial for Software Design with Visual Paradigm: Learn how to use Visual Paradigm’s AI-powered textual analysis to extract software design elements from natural language requirements.
Identifying Domain Classes Using AI Textual Analysis in Visual Paradigm: Automatically identify domain classes from text using Visual Paradigm’s AI tools to streamline software modeling.
Visual Paradigm AI Toolbox: Textual Analysis Tool for Software Modeling: Transform unstructured text into structured software models by identifying entities, relationships, and key concepts using AI.
AI-Powered Balanced Scorecard Software for Strategic Planning: Leverage AI-driven insights to build and manage balanced scorecards for effective strategic execution.
Comprehensive Guide to the AI-Powered KPI Performance Diagram Builder: A guide to using AI-powered tools for creating dynamic, real-time KPI performance diagrams to support data-driven decision-making.
Understanding the AI-Powered KPI Performance Diagram for a Coffee Shop: A practical example of how small businesses, such as coffee shops, can use AI-driven KPI diagrams to track sales, customer behavior, and operations.
AI-Powered Risk Breakdown Structure Generator: Simplify Proactive Risk Management: An AI-powered tool in Visual Paradigm that automates the creation of Risk Breakdown Structures for proactive risk identification and management.
Real-World Examples of AI-Generated Risk Breakdown Structures: Explore real-world applications of AI-powered risk breakdown structures in IT, construction, and finance to improve risk assessment accuracy and efficiency.
Minimizing Risk: Building Effective W.T. Strategies with AI: Use AI-driven insights to build strong worst-case and threat response strategies for more resilient project planning and execution.
Using AI to Assess Risk in the Ansoff Matrix for Strategic Growth: Apply AI to evaluate risks in the Ansoff Matrix, enabling data-driven decisions for market expansion and product strategy.
AI-Powered Scenario Analysis for Strategic Business Planning: Utilize AI-driven scenario analysis to model future outcomes, evaluate risks, and support strategic business decisions.
AI-Powered Visual Tools for Creating Infographics, Charts, and Graphics: Create professional infographics, charts, and graphics quickly with AI-powered tools that offer intelligent design suggestions and automation.
Visual Paradigm Introduces AI-3 Aspect Infographic Tool for Enhanced Design Efficiency: Discover the AI-3 Aspect Infographic Tool, featuring three intelligent design dimensions to enhance creativity and streamline content creation.
Visual Paradigm Launches AI-8 Aspect Infographic Designer for Advanced Visual Creation: Leverage the AI-8 Aspect Infographic Designer for eight intelligent design features that accelerate and elevate visual content quality.
Mastering Sequence Diagrams with Visual Paradigm: AI Chatbot Tutorial: A beginner’s tutorial on creating sequence diagrams in Visual Paradigm using an e-commerce chatbot case study.
Comprehensive Tutorial: Using Visual Paradigm’s AI Diagram Generator: Step-by-step guide to using Visual Paradigm’s AI-powered diagram generator for efficient diagram creation.
Visual Paradigm AI: Streamlining Diagram Creation with AI: This tutorial demonstrates how Visual Paradigm’s AI features enable real-time generation and refinement of software diagrams.
Sonix – AI-Powered Speech-to-Text Transcription Service: Sonix uses AI to deliver fast and accurate transcription of audio and video for meetings, interviews, and content creation.
Mastering Diagram Translation with Visual Paradigm’s AI Image Translator: A guide to using Visual Paradigm Online’s AI-powered image-to-diagram translator for converting hand-drawn or image-based diagrams into editable models.
Click-Start AI: Rapid AI Integration for Visual Paradigm Users: Step-by-step instructions for activating and using AI features in Visual Paradigm to accelerate diagramming with intelligent automation.
AI-Powered Image Translator Tutorial for Visual Paradigm Online: A tutorial on using Visual Paradigm Online’s AI-powered image translator to automatically convert visual content into structured diagrams and models.
LinkVP – AI-Powered Link Management and Analytics Platform: LinkVP delivers an AI-driven platform for creating, tracking, and optimizing custom links with real-time analytics and advanced customization.
Top Diagram Generators of 2024: A Comprehensive Guide by WritingMate AI: An overview of top AI-powered diagram generators, highlighting key features, usability, and ideal applications for professionals and creators.
MyMap AI – Intelligent Diagram Generator with Natural Language Input: MyMap AI generates professional diagrams instantly from text prompts, combining AI intelligence with intuitive design for effortless planning.
DiagrammingAI – Next-Gen AI Diagram Creation for Teams and Individuals: DiagrammingAI uses artificial intelligence to quickly turn ideas into polished diagrams with real-time collaboration and intelligent layout suggestions.
Why Visual Paradigm ‘s AI -Powered Image Translator… – Visualize AI: Visual Paradigm’s AI-powered image translator delivers advanced, professional-grade image translation for technical and design workflows.
AI Tree Diagram Maker | Visualize Hierarchical Data Instantly: Create professional hierarchical diagrams such as mind maps, org charts, and work breakdowns instantly using AI by describing your topic.
Integrating AI Activity Diagrams into Your Visual Paradigm …: Generate and refine UML activity diagrams using natural language input through AI-powered modeling in Visual Paradigm.
Activity Diagram AI – Visual Paradigm Online: Explore a global collection of user-created activity diagrams for inspiration and professional design ideas.
Ultimate Guide to AI-Powered Diagramming Tools (2025): Discover how AI-powered diagramming tools are transforming visual communication with intelligent automation and ease of use.
AI-Powered UML Class Diagram Generator by Visual Paradigm: Generate accurate UML class diagrams from natural language descriptions using AI-assisted automation.
Real-Life Case Study: Generating UML Class Diagrams with Visual Paradigm AI: A real-world project demonstrates how Visual Paradigm’s AI assistant converts textual requirements into precise UML class diagrams.
Comprehensive Tutorial: Generate UML Class Diagrams with Visual Paradigm’s AI Assistant: Learn to create accurate UML class diagrams from plain text using Visual Paradigm Online’s AI assistant in a step-by-step guide.

Mastering UML Deployment Diagrams: A Hybrid Approach with Visual Paradigm AI

In the fast-paced world of software architecture, the ability to accurately document system infrastructure is crucial. For years, architects have relied on manual drafting to create UML Deployment Diagrams—a process known for its precision but also its tediousness. However, the landscape has shifted in 2026. With the integration of Artificial Intelligence into tools like Visual Paradigm, the workflow has evolved from purely manual dragging and dropping to a sophisticated conversation with AI.

Deployment Diagram for Embedded System

This guide explores the strengths and weaknesses of both traditional manual modeling and AI-powered generation, ultimately advocating for a hybrid approach. By mixing the speed of AI with the precision of human oversight, architects can achieve results that are both rapid and professional.

UML Component Diagram: A Definitive Guide to Designing Modular Software with AI - AI Chatbot

The Traditional Approach: Manual Modeling

For many teams, the classic approach remains the default. This involves opening the editor, selecting the Deployment Diagram type, and building the infrastructure topology from a blank canvas.

The Manual Workflow

Creating a diagram manually is a granular process involving several specific steps:

Node Placement: Architects manually drag 3D node boxes onto the canvas to represent servers, devices, execution environments, or cloud resources such as <<AWS EC2>> or <<Kubernetes Cluster>>.
Artifact Management: Files like .war, .jar, or database schemas are explicitly placed onto nodes to show where code is deployed.
Connection Drawing: Communication paths are drawn using solid lines, requiring manual selection of stereotypes like <<HTTP>> or <<TCP/IP>>.
Visual Organization: The user must manually align shapes, color-code security zones, and manage nested nodes for VPCs or data centers.

Strengths of the Old School

Despite being labor-intensive, manual modeling has persisted because it offers total control. Every decision regarding layout and stereotypes is deliberate, forcing the architect to think deeply about topology, performance bottlenecks, and failover strategies. It is particularly effective for the final polish required for compliance documents or high-stakes architecture reviews.

The Pain Points

However, the downsides are significant, especially for complex cloud deployments:

Time Intensity: A realistic setup involving load balancers, auto-scaling groups, databases, and CDNs can take 45 to 90 minutes for a first draft.
Iteration Fatigue: Minor changes, such as adding a firewall or changing a protocol, often require tedious dragging, reconnecting, and realigning of elements.
Onboarding Issues: Junior developers often struggle with the strict syntax of UML notation, leading to inconsistencies.

The AI Revolution: Fast Prototyping with Guardrails

Visual Paradigm’s AI chatbot and diagram generator have introduced a paradigm shift. Instead of drawing, the architect describes the system in plain English, and the tool generates the visual representation.

How AI Modeling Works

The process is conversational and iterative:

Description: The user provides a text prompt, such as: “Generate a UML Deployment Diagram for a microservices e-commerce platform on AWS with an Internet-facing ALB, EC2 instances, RDS PostgreSQL, and S3.”
Generation: The AI produces a complete diagram in seconds, correctly identifying nodes, artifacts, and relationships.
Refinement: The user iterates via chat commands like “Add a bastion host in a public subnet” or “Make the database highly available with read replicas.”

Why Architects Are Adopting AI

The immediate benefit is blazing speed. A draft that previously took nearly an hour can now be generated in under two minutes. Furthermore, the AI adheres to semantic correctness, ensuring proper UML rules are followed regarding node versus execution environment distinctions. It also serves as a knowledge booster, offering suggestions for high availability or security when prompted.

However, AI is not without limitations. The layout prioritizes correctness over aesthetics, often requiring cleanup. Additionally, highly bespoke elements or custom hardware icons may be missed, and there is a risk of over-reliance where subtle errors in dependency direction might go unnoticed if not reviewed.

The Winning Strategy: The Hybrid Approach

The most effective workflow today is not choosing between manual and AI, but blending them. This Hybrid Approach leverages the best of both worlds to maximize productivity and quality.

Phase 1: AI for the Heavy Lifting (80-90%)

Start every project with the AI tools. Use natural language to describe your infrastructure. This phase is dedicated to speed, exploration, and establishing the semantic structure of the diagram. It allows for rapid “what-if” scenarios and creates a solid foundation without the drudgery of dragging initial shapes.

Phase 2: Manual for the Final Mile (10-20%)

Once the AI draft is ready, export it into the full Visual Paradigm editor. This is where human expertise shines. Architects should:

Fine-tune the layout for readability.
Add custom notes, constraints, and specific visual cues (icons/swimlanes).
Adjust colors to match corporate branding or specific architectural standards.
Ensure the diagram effectively communicates the narrative required for stakeholders.

Phase 3: The Iterative Loop

When major structural changes occur—such as a migration to multi-cloud or the addition of a new security zone—architects can jump back to the AI chat for quick regeneration, then polish manually again. This is significantly faster than redrawing complex diagrams from scratch.

Comparison: Manual vs. AI vs. Hybrid

Feature	Manual Modeling	AI-Powered	Hybrid Approach
Speed	Slow (45+ mins)	Instant (< 2 mins)	Fast (5-10 mins)
Control	High (Pixel perfect)	Moderate (Prompt-based)	Maximum (Best of both)
Consistency	Variable (Human error)	High (Rule-based)	High (AI draft + Human check)
Flexibility	Low (Hard to refactor)	High (Regenerate instantly)	High (Iterative flow)

Conclusion: Elevation, Not Replacement

The introduction ofAI into deployment diagramming does not render the architect’s skills obsolete; rather, it elevates them. Traditional manual skills provide the necessary foundation for precision and review, while AI provides unprecedented speed and accessibility.

In 2026, the competitive advantage lies in the deliberate mix of these methods. By using AI as an accelerator and applying human judgment for refinement, architects can produce higher-quality documentation in a fraction of the time. If you are still dragging every node manually, it is time to embrace the hybrid future.

Deployment Diagram Archives - AI Chatbot

Visual Paradigm AI Powered Deployment Diagram Resource

The following articles and resources provide detailed information on using AI-powered tools to create and manage deployment diagrams within the Visual Paradigm platform:

How to Create a UML Deployment Diagram for Cloud Apps with AI: This article provides a step-by-step guide on using AI-powered tools to efficiently generate UML deployment diagrams specifically for cloud applications.
AI-Powered C4 Diagram Generator – Visual Paradigm AI: The AI-powered generator supports the documentation of the four core levels of the C4 Model, including the context, container, component, and deployment views.
PlantUML Deployment Diagram Builder – Visual Paradigm Integration: Users can generate and edit deployment diagrams using PlantUML syntax with full visualization and editing support integrated within the Visual Paradigm platform.
What is a Deployment Diagram? A Complete Guide to UML Deployment Diagrams: This comprehensive guide explains the purpose and components of UML deployment diagrams and outlines best practices for modeling software system architecture.
Deployment Diagram Features in Visual Paradigm Software: Visual Paradigm offers advanced features for creating deployment diagrams, including drag-and-drop modeling, real-time collaboration, and full UML integration.
Deployment Diagram in the Software Design Handbook: The software design handbook provides practical insights into using deployment diagrams to design scalable and maintainable software systems.
Step-by-Step Tutorial: Creating Deployment Diagrams with Visual Paradigm: A hands-on tutorial walks users through the process of building deployment diagrams from scratch, covering nodes, artifacts, and real-world relationships.
Beginner’s Guide to Deployment Diagrams Using Visual Paradigm Online: This beginner’s guide explains how to use Visual Paradigm Online to model system deployment and infrastructure using UML deployment diagrams.
Free Deployment Diagram Software: Visual Paradigm Online: Visual Paradigm Online offers a suite of free tools for creating professional deployment diagrams directly in a web browser without the need for software installation.
C4 Model Deployment Diagram for Internet Banking System: This specific deployment diagram template illustrates the physical architecture of an internet banking system based on the C4 modeling framework.
How to Draw a Deployment Diagram in UML: Step-by-Step Tutorial: This comprehensive guide covers the technical steps for creating UML deployment diagrams, including nodes and system relationships, within the Visual Paradigm environment.
Drawing Deployment Diagrams: Visual Paradigm User Guide: The official user guide provides the technical steps and best practices required to draw accurate and professional deployment diagrams.

Visual Paradigm AI Package Diagram Generator: Text to UML Packages

You’re architecting a new content management system, staring at layers, modules, and dependencies — presentation, business rules, persistence, security — but the high-level structure stays fuzzy. Manually creating packages, subpackages, and dependency arrows feels like overkill for a first draft. Enter Visual Paradigm’s AI Package Diagram Generator: describe your system in plain words, and get a clean, standards-compliant UML package diagram in seconds. It’s the fast lane from mental model to visual blueprint.

Why This AI Changes Software Architecture

Natural language → full UML package diagram instantly
Auto-identifies packages, subpackages, dependencies, and stereotypes
Handles layered, modular, and microservices-style structures
Fully editable native model — refine, add notes, merge packages
Desktop precision + browser chatbot for rapid iteration

1. Desktop: Prompt → Structured Architecture

In Visual Paradigm Desktop:

Tools → AI Diagram Generation → select “Package Diagram” → describe your system:

“Generate a UML Package Diagram for a content management system with Presentation Layer (Web UI, Mobile App), Business Logic Layer (Content Service, User Management, Workflow Engine), Data Access Layer (Repository, Audit Logging), and show dependencies between layers.”

The input dialog keeps it simple and focused:

Visual Paradigm Desktop AI Package Diagram generation prompt interface

AI builds:

Top-level packages: Presentation Layer, Business Logic Layer, Data Access Layer
Subpackages: Web UI, Mobile App, Content Service, Repository
Clear dependency arrows (dashed) showing flow between layers

Resulting content management system package diagram — logical, layered, and ready for review:

AI-generated UML Package Diagram for Content Management System

Immediately edit: add security package, adjust dependencies, or integrate with class diagrams.

2. Chatbot: Conversational Architecture on the Go

For quick sketches or remote brainstorming, open the Visual Paradigm AI Chatbot:

“Create UML Package Diagram for a banking system: Core Banking Services, Account Management, Customer Management, Transaction Processing, Compliance & Auditing.”

The chatbot generates it live — packages, subpackages, and dependencies appear instantly. Example output for a banking system:

AI-generated UML Package Diagram for Banking System via Chatbot

Refine in conversation: “Add Payment Gateway package with dependency to Transaction Processing.” Instant update. Perfect for early design sessions or teaching UML.

Why Package Diagrams + AI Matter in 2026

Good architecture starts with clear boundaries. Package diagrams show modularity, layers, and dependencies before a single line of code is written. Manual creation slows you down; AI removes the friction.

Use cases that shine:

Layered enterprise apps
Microservices boundaries
Teaching modular design
Quick refactoring planning

Change scope mid-discussion? Regenerate. New module needed? Add it. That speed keeps architecture agile and team communication sharp.

Ready to Visualize Your System Structure?

Visual Paradigm’s AI Package Diagram Generator turns vague ideas into professional UML packages fast — whether for CMS, banking, e-commerce, or any modular system.

Download Visual Paradigm Desktop → Full modeling power: Get Desktop Now
Try AI Chatbot Online → Instant architecture sketches: Start Chatting

Stop wrestling with boxes and arrows. Start designing smarter — today.

🔧 Overview: What Is AI-Powered Textual Analysis?

📌 Prerequisites: Getting Started

🔄 Step-by-Step Workflow: From Idea to Class Diagram

Step 1: Launch the AI Textual Analysis Tool

Step 2: Generate or Refine the Problem Description

🔹 Enter a Domain Prompt

🔹 Click: Generate Problem Description

✅ Critical Best Practice: Edit the Generated Text

Step 3: Identify Candidate Classes

📋 Output: List of Candidate Classes

✅ Review & Refine

Step 4: Identify Class Details (Attributes & Operations)

📊 Example Output for Order:

Step 5: Identify Class Relationships

📋 Example Output:

Step 6: Generate the Class Diagram

✅ Features of the Generated Diagram:

Step 7: Iterate and Refine (Recommended)

🔁 How to Iterate:

Step 8: Export & Further Edit in Visual Paradigm Online

📤 Export to Visual Paradigm Online

🔄 Import Back to Desktop

🌟 Benefits & Advantages

🛠️ Best Practices & Pro Tips

📘 Use Case Example: Building a Library Management System

📌 Prompt:

📝 Enhanced Description:

📌 AI Output Highlights:

🌐 Additional Resources

✅ Conclusion: Empower Your Design with AI

Overview

✅ Key Features

🛠️ Step-by-Step Guide: How to Use the Visual Paradigm AI Chatbot

1. Access the Chatbot

2. Start a New or Continue an Existing Chat

3. Generate a Diagram (Core Prompt)

4. Refine Iteratively (Conversational Power)

5. Analyze & Explain Diagrams

6. Export & Integrate into Projects

🌟 User Experience: Why Teams Love It

✅ Real-World Benefits

📌 Best Practices for Optimal Results

🏁 Conclusion: The Future of Visual Modeling is Conversational

🔧 Need Help? Try This Prompt!

📬 Have a Scenario in Mind? Let’s Build It Together

Introduction to UML and Sequence Diagrams

Key Concepts in Sequence Diagrams

Case Study: E-Commerce Order Submission Process

Participants

Interpretation of the Diagram

Using Visual Paradigm’s AI Chatbot to Create the Sequence Diagram

Step-by-Step Process

How to Use Sequence Diagrams Effectively

Conclusion

Articles and resources

Quick summary: Key takeaways

Step 1: Defining the Scope with Natural Language

Step 2: Analyzing the AI-Generated Data Model

Why This AI Feature is a Must-Have for Modelers

Automatic Attribute and Key Assignment

From Static Image to Functional Project

How to Create Your Own AI ERD

Conclusion

Related Links

🎯 What Is a Use Case-Driven Approach?

🧩 Why Use Sequence Diagrams in Use Case-Driven Development?

📌 Key Concepts of UML Sequence Diagrams (Beginner-Friendly)

🔄 How to Create a Sequence Diagram from a Use Case (Step-by-Step)

📌 Example: Use Case – “User Logs In to System”

Step 1: Identify Actors and Objects

Step 2: Define the Main Flow

Step 3: Add Control Logic with Combined Fragments

Step 4: Add Activation Bars

Step 5: Final Diagram

📌 Example 2: Use Case – “Customer Withdraws Cash from ATM”

Step 1: Identify Participants

Step 2: Main Flow

Step 3: Add Fragments

📌 Example 3: Use Case – “Customer Completes E-Commerce Checkout”

Step 1: Participants

📊 Example Output for `Order`:
